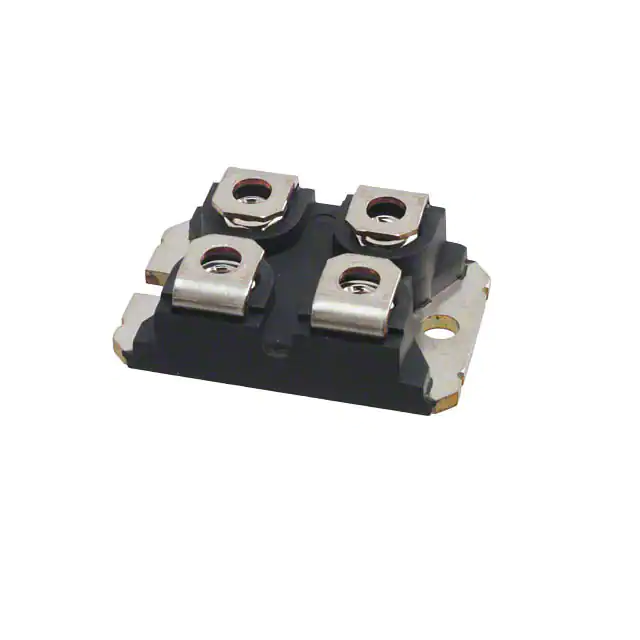

| Part Number | APT50M75JLL | APT60M75JLL | APT50M65JLL | APT50M75JFLL |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V | 600 V | 500 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 51A (Tc) | 58A (Tc) | 58A (Tc) | 51A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 10V | 10V | - |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 25.5A, 10V | 75mOhm @ 29A, 10V | 65mOhm @ 29A, 10V | 75mOhm @ 25.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 2.5mA | 5V @ 5mA | 5V @ 2.5mA | 5V @ 2.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 125 nC @ 10 V | 195 nC @ 10 V | 141 nC @ 10 V | 125 nC @ 10 V |
| Vgs (Max) | - | ±30V | ±30V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 5590 pF @ 25 V | 8930 pF @ 25 V | 7010 pF @ 25 V | 5590 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | - | 595W (Tc) | 520W (Tc) | - |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Supplier Device Package | ISOTOP® | ISOTOP® | ISOTOP® | ISOTOP® |
| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
