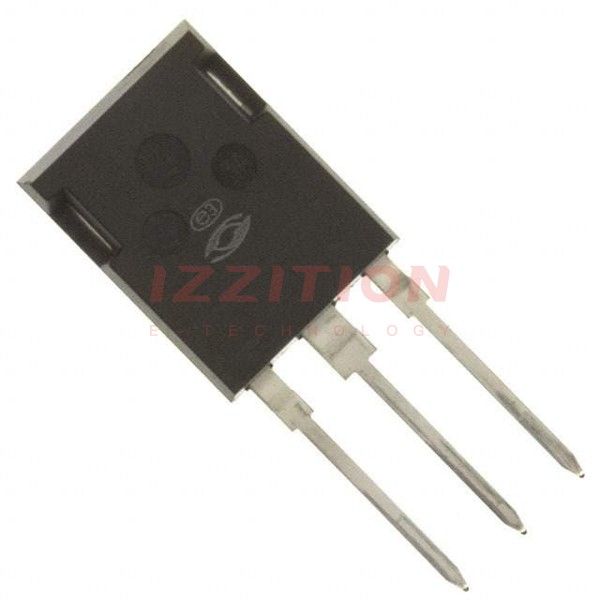

| Part Number | APT50GF120B2RG | APT50GT120B2RG |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| IGBT Type | NPT | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 135 A | 94 A |
| Current - Collector Pulsed (Icm) | 150 A | 150 A |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 50A | 3.7V @ 15V, 50A |
| Power - Max | 781 W | 625 W |
| Switching Energy | 3.6mJ (on), 2.64mJ (off) | 2330µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 340 nC | 340 nC |
| Td (on/off) @ 25°C | 25ns/260ns | 24ns/230ns |
| Test Condition | 800V, 50A, 1Ohm, 15V | 800V, 50A, 4.7Ohm, 15V |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 Variant | TO-247-3 |
| Supplier Device Package | - | - |
