Microchip Technology-APT44F80B2 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	800 V
Current - Continuous Drain (Id) @ 25°C:	47A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	210mOhm @ 24A, 10V
Vgs(th) (Max) @ Id:	5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs:	305 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	9330 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	1135W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	T-MAX™ [B2]
Package / Case:	TO-247-3 Variant

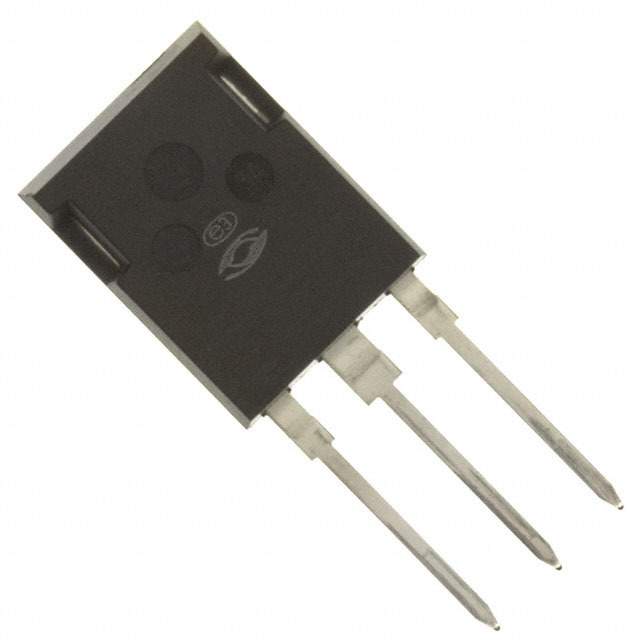

Microchip Technology APT44F80B2
