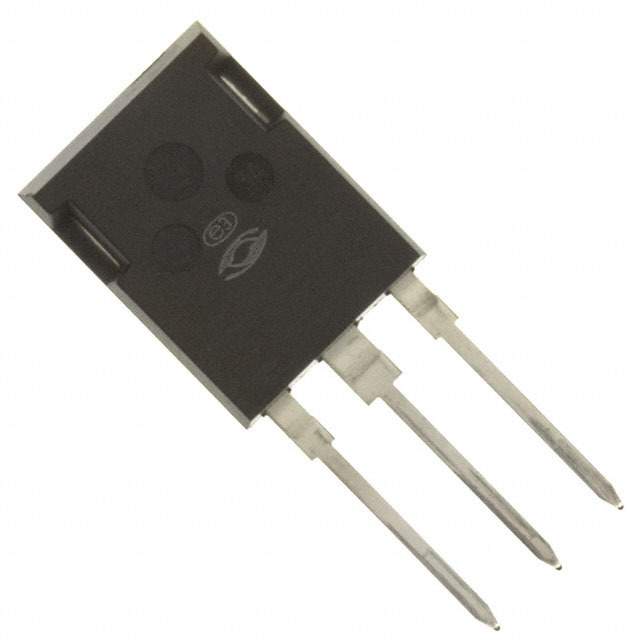

| Part Number | APT40GP60B2DQ2G | APT50GP60B2DQ2G | APT40GP90B2DQ2G |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| IGBT Type | PT | PT | PT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 900 V |
| Current - Collector (Ic) (Max) | 100 A | 150 A | 101 A |
| Current - Collector Pulsed (Icm) | 160 A | 190 A | 160 A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 40A | 2.7V @ 15V, 50A | 3.9V @ 15V, 40A |
| Power - Max | 543 W | 625 W | 543 W |
| Switching Energy | 385µJ (on), 350µJ (off) | 465µJ (on), 635µJ (off) | 795µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 135 nC | 165 nC | 145 nC |
| Td (on/off) @ 25°C | 20ns/64ns | 19ns/85ns | 14ns/90ns |
| Test Condition | 400V, 40A, 5Ohm, 15V | 400V, 50A, 4.3Ohm, 15V | 600V, 40A, 4.3Ohm, 15V |
| Reverse Recovery Time (trr) | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 Variant | TO-247-3 Variant | TO-247-3 Variant |
| Supplier Device Package | - | - | - |
