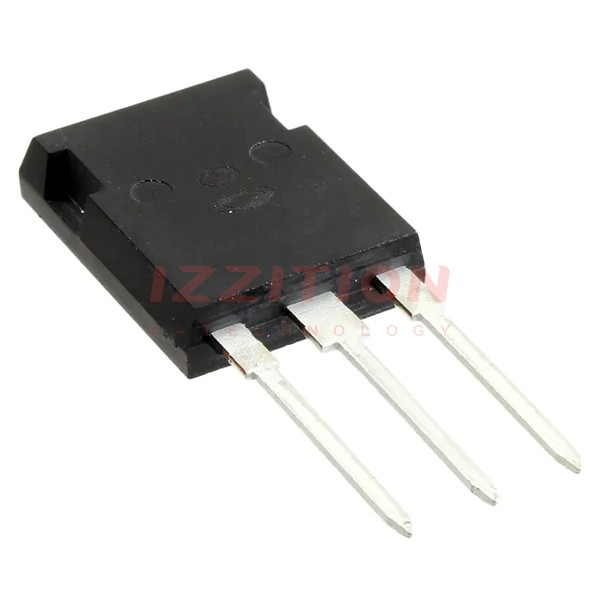

| Part Number | APT35GP120BG | APT45GP120BG | APT25GP120BG | APT35GN120BG |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| IGBT Type | PT | PT | PT | NPT, Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 96 A | 100 A | 69 A | 94 A |
| Current - Collector Pulsed (Icm) | 140 A | 170 A | 90 A | 105 A |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 35A | 3.9V @ 15V, 45A | 3.9V @ 15V, 25A | 2.1V @ 15V, 35A |
| Power - Max | 543 W | 625 W | 417 W | 379 W |
| Switching Energy | 750µJ (on), 680µJ (off) | 900µJ (on), 904µJ (off) | 500µJ (on), 438µJ (off) | 2.315mJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 150 nC | 185 nC | 110 nC | 220 nC |
| Td (on/off) @ 25°C | 16ns/94ns | 18ns/102ns | 12ns/70ns | 24ns/300ns |
| Test Condition | 600V, 35A, 5Ohm, 15V | 600V, 45A, 5Ohm, 15V | 600V, 25A, 5Ohm, 15V | 800V, 35A, 2.2Ohm, 15V |
| Reverse Recovery Time (trr) | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 [B] | TO-247 [B] | TO-247 [B] | TO-247 [B] |
