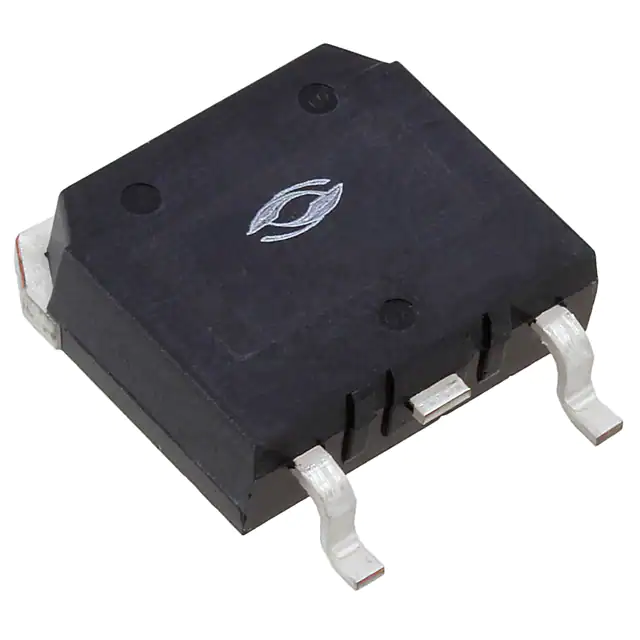

| Part Number | APT35GN120SG/TR | APT25GN120SG/TR |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| IGBT Type | NPT, Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 84 A | 67 A |
| Current - Collector Pulsed (Icm) | 105 A | 75 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 35A | 2.1V @ 15V, 25A |
| Power - Max | 379 W | 272 W |
| Switching Energy | -, 2.315mJ (off) | -, 2.15J (off) |
| Input Type | Standard | Standard |
| Gate Charge | 220 nC | 155 nC |
| Td (on/off) @ 25°C | 24ns, 300ns | 22ns/280ns |
| Test Condition | 800V, 35A, 2.2Ohm, 15V | 800V, 25A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | D3PAK | D3PAK |
