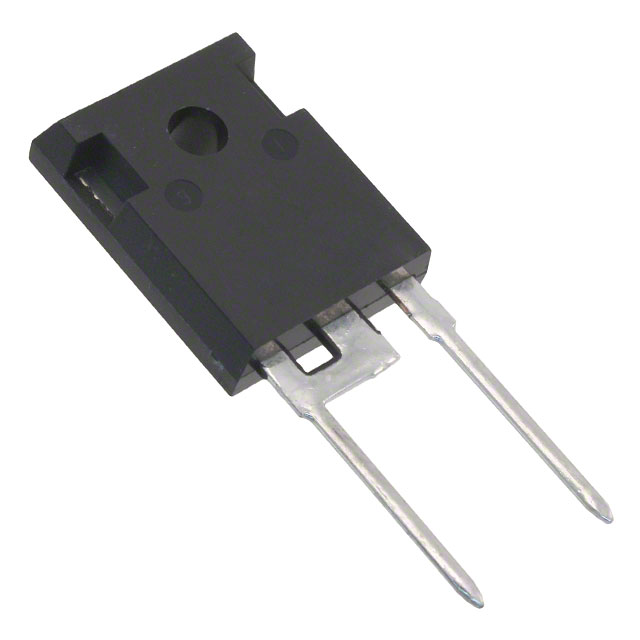

| Part Number | APT30S20BG | APT60S20BG | APT30S20SG | APT30D20BG |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microsemi Corporation | Microchip Technology |
| Product Status | Active | Active | Obsolete | Active |
| Diode Type | Schottky | Schottky | Schottky | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V | 200 V | 200 V | 200 V |
| Current - Average Rectified (Io) | 45A | 75A | 45A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 30 A | 900 mV @ 60 A | 850 mV @ 30 A | 1.3 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 55 ns | 55 ns | 55 ns | 24 ns |
| Current - Reverse Leakage @ Vr | 500 µA @ 200 V | 1 mA @ 200 V | 500 µA @ 200 V | 250 µA @ 200 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole |
| Package / Case | TO-247-2 | TO-247-2 | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-247-2 |
| Supplier Device Package | TO-247 [B] | TO-247 [B] | D3 [S] | TO-247 [B] |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 175°C |
