Microchip Technology-APT30M36LLLG - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	300 V
Current - Continuous Drain (Id) @ 25°C:	84A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	36mOhm @ 42A, 10V
Vgs(th) (Max) @ Id:	5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs:	115 nC @ 10 V
Vgs (Max):	-
Input Capacitance (Ciss) (Max) @ Vds:	6480 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	-
Operating Temperature:	-
Mounting Type:	Through Hole
Supplier Device Package:	TO-264 [L]
Package / Case:	TO-264-3, TO-264AA

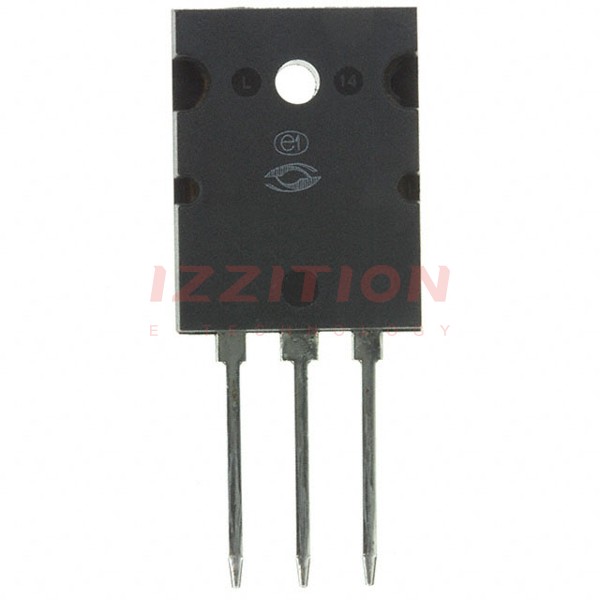

Microchip Technology APT30M36LLLG
