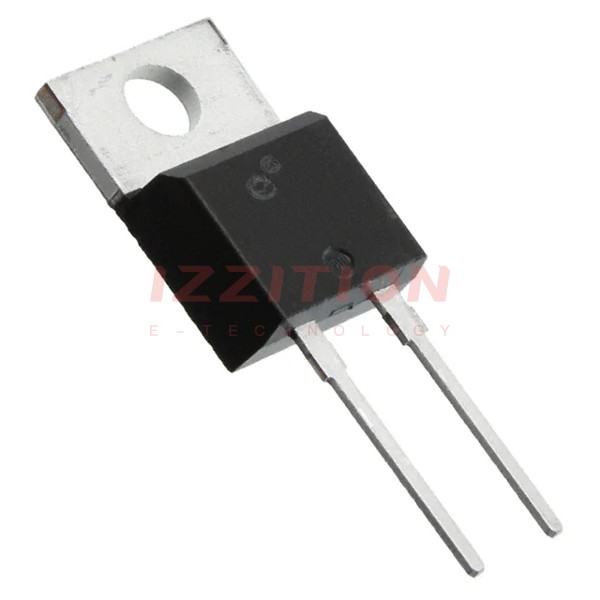

| Part Number | APT30DQ60KG | APT30DQ60BG |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V |
| Current - Average Rectified (Io) | 30A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 2.4 V @ 30 A | 2.4 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns | 30 ns |
| Current - Reverse Leakage @ Vr | 25 µA @ 600 V | 25 µA @ 600 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-220-2 | TO-247-2 |
| Supplier Device Package | TO-220 [K] | TO-247 [B] |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C |
