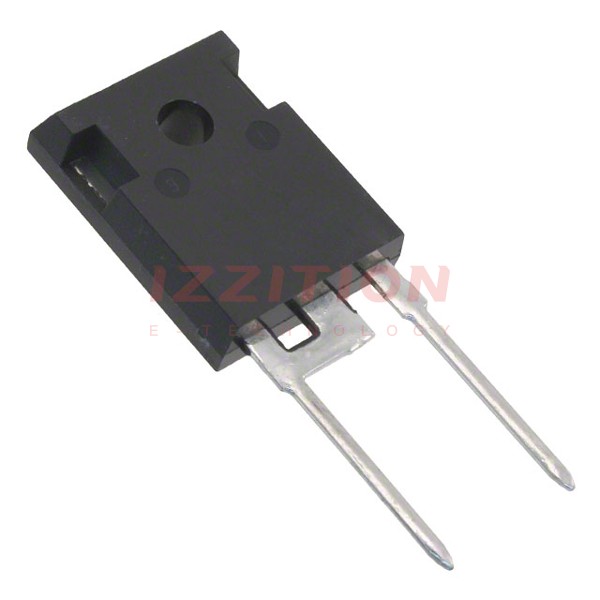

Microchip Technology-APT30DQ120BG - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	APT30DQ120BG	APT40DQ120BG	APT60DQ120BG	APT30DQ120KG	APT30D120BG	APT30DQ100BG
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Active	Active
Diode Type	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	1200 V	1200 V	1200 V	1200 V	1200 V	1000 V
Current - Average Rectified (Io)	30A	40A	60A	30A	30A	30A
Voltage - Forward (Vf) (Max) @ If	3.3 V @ 30 A	3.3 V @ 40 A	3.3 V @ 60 A	3.3 V @ 30 A	2.5 V @ 30 A	3 V @ 30 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	320 ns	350 ns	320 ns	320 ns	370 ns	295 ns
Current - Reverse Leakage @ Vr	100 µA @ 1200 V	100 µA @ 1200 V	100 µA @ 1200 V	100 µA @ 1200 V	250 µA @ 1200 V	100 µA @ 1000 V
Capacitance @ Vr, F	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-247-2	TO-247-2	TO-247-2	TO-220-3	TO-247-2	TO-247-2
Supplier Device Package	TO-247 [B]	TO-247 [B]	TO-247 [B]	TO-220 [K]	TO-247	TO-247 [B]
Operating Temperature - Junction	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1200 V
Current - Average Rectified (Io):	30A
Voltage - Forward (Vf) (Max) @ If:	3.3 V @ 30 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	320 ns
Current - Reverse Leakage @ Vr:	100 µA @ 1200 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-247-2
Supplier Device Package:	TO-247 [B]
Operating Temperature - Junction:	-55°C ~ 175°C

Microchip Technology APT30DQ120BG
