Microchip Technology-APT30D120BG - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	APT30D120BG	APT60D120BG	APT30DQ120BG	APT30D20BG	APT30D120SG	APT30D100BG
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Active	Active
Diode Type	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	1200 V	1200 V	1200 V	200 V	1200 V	1000 V
Current - Average Rectified (Io)	30A	60A	30A	30A	30A	30A
Voltage - Forward (Vf) (Max) @ If	2.5 V @ 30 A	2.5 V @ 60 A	3.3 V @ 30 A	1.3 V @ 30 A	2.5 V @ 30 A	2.3 V @ 30 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	370 ns	400 ns	320 ns	24 ns	370 ns	290 ns
Current - Reverse Leakage @ Vr	250 µA @ 1200 V	250 µA @ 1200 V	100 µA @ 1200 V	250 µA @ 200 V	250 µA @ 1200 V	250 µA @ 1000 V
Capacitance @ Vr, F	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Surface Mount	Through Hole
Package / Case	TO-247-2	TO-247-2	TO-247-2	TO-247-2	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA	TO-247-2
Supplier Device Package	TO-247	TO-247 [B]	TO-247 [B]	TO-247 [B]	D3 [S]	TO-247
Operating Temperature - Junction	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1200 V
Current - Average Rectified (Io):	30A
Voltage - Forward (Vf) (Max) @ If:	2.5 V @ 30 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	370 ns
Current - Reverse Leakage @ Vr:	250 µA @ 1200 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-247-2
Supplier Device Package:	TO-247
Operating Temperature - Junction:	-55°C ~ 175°C

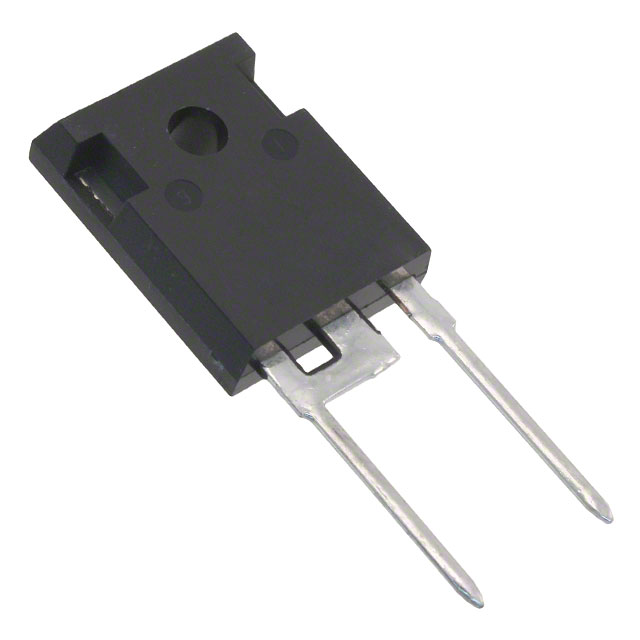

Microchip Technology APT30D120BG
