Microchip Technology-APT30D100BHBG - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Series Connection
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1000 V
Current - Average Rectified (Io) (per Diode):	18A
Voltage - Forward (Vf) (Max) @ If:	2.3 V @ 30 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	290 ns
Current - Reverse Leakage @ Vr:	250 µA @ 1000 V
Operating Temperature - Junction:	-55°C ~ 175°C
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247 [B]

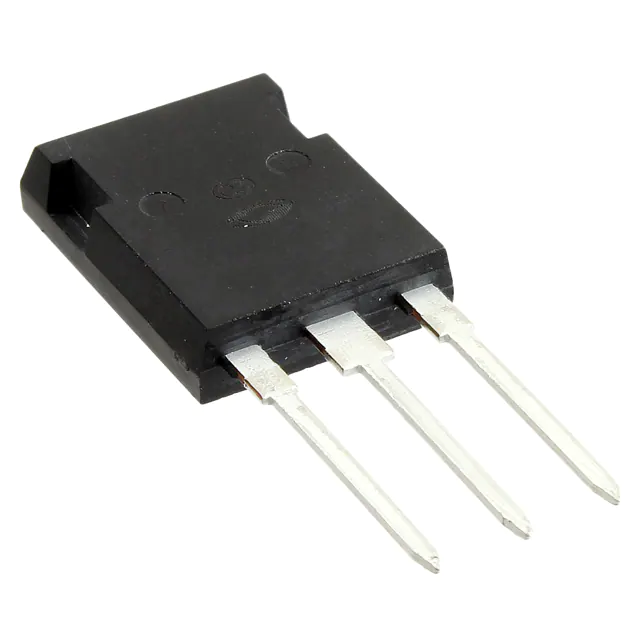

Microchip Technology APT30D100BHBG
