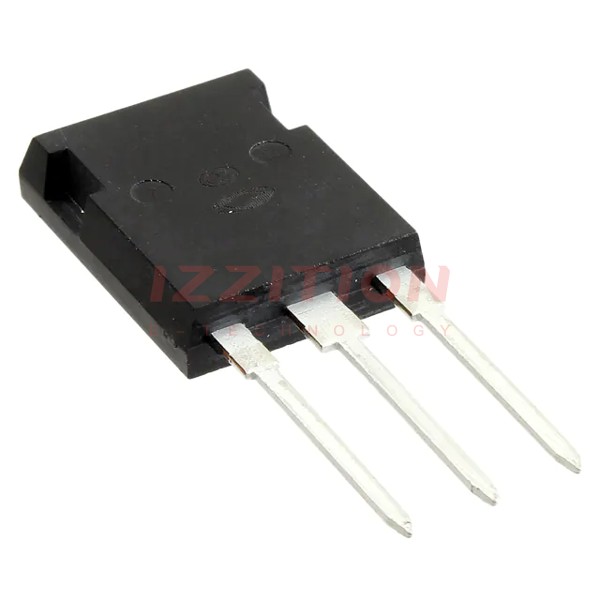

| Part Number | APT25GN120BG | APT25GN120SG | APT35GN120BG | APT25GP120BG |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | NPT, Trench Field Stop | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 67 A | 67 A | 94 A | 69 A |
| Current - Collector Pulsed (Icm) | 75 A | 75 A | 105 A | 90 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 25A | 2.1V @ 15V, 25A | 2.1V @ 15V, 35A | 3.9V @ 15V, 25A |
| Power - Max | 272 W | 272 W | 379 W | 417 W |
| Switching Energy | 2.15µJ (off) | - | 2.315mJ (off) | 500µJ (on), 438µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 155 nC | 155 nC | 220 nC | 110 nC |
| Td (on/off) @ 25°C | 22ns/280ns | 22ns/280ns | 24ns/300ns | 12ns/70ns |
| Test Condition | 800V, 25A, 1Ohm, 15V | 800V, 25A, 1Ohm, 15V | 800V, 35A, 2.2Ohm, 15V | 600V, 25A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 [B] | D3PAK | TO-247 [B] | TO-247 [B] |
