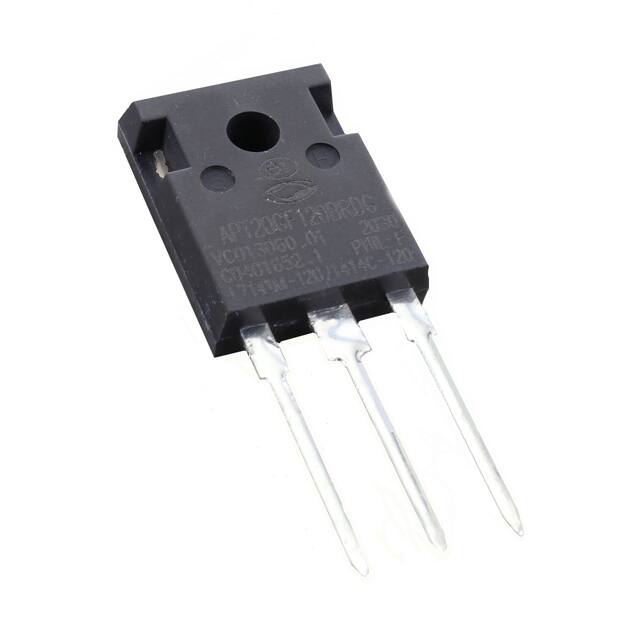

| Part Number | APT20GF120BRDG | APT20GF120BRG |
|---|---|---|
| Manufacturer | Microchip Technology | Microsemi Corporation |
| Product Status | Active | Obsolete |
| IGBT Type | NPT | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 32 A | 32 A |
| Current - Collector Pulsed (Icm) | 64 A | 64 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 15A | 3.2V @ 15V, 15A |
| Power - Max | 200 W | 200 W |
| Switching Energy | - | 2.7mJ |
| Input Type | Standard | Standard |
| Gate Charge | 140 nC | 95 nC |
| Td (on/off) @ 25°C | 17ns, 93ns | 17ns/105ns |
| Test Condition | 792V, 20A, 10Ohm, 15V | - |
| Reverse Recovery Time (trr) | 85 ns | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247-3 | TO-247 [B] |
