Please send RFQ , we will respond immediately.

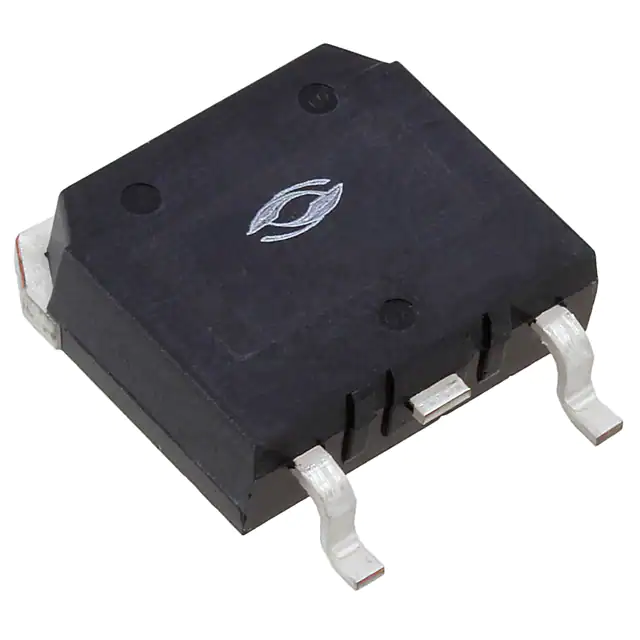

| Part Number | APT18M100S | APT14M100S | APT18M100B |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000 V | 1000 V | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 18A (Tc) | 14A (Tc) | 18A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 700mOhm @ 9A, 10V | 880mOhm @ 7A, 10V | 700mOhm @ 9A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 1mA | 5V @ 1mA | 5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 150 nC @ 10 V | 120 nC @ 10 V | 150 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 4845 pF @ 25 V | 3965 pF @ 25 V | 4845 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 625W (Tc) | 500W (Tc) | 625W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Through Hole |
| Supplier Device Package | D3PAK | D3PAK | TO-247 [B] |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-247-3 |
