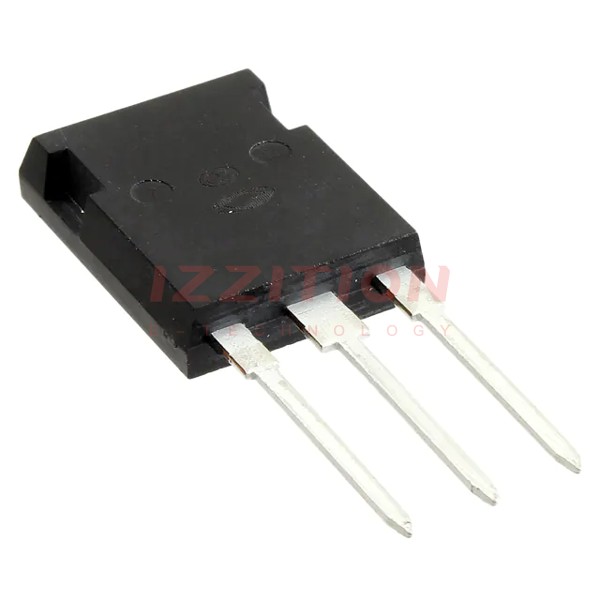

| Part Number | APT15GT120BRG | APT25GT120BRG |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| IGBT Type | NPT | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 36 A | 54 A |
| Current - Collector Pulsed (Icm) | 45 A | 75 A |
| Vce(on) (Max) @ Vge, Ic | 3.6V @ 15V, 15A | 3.7V @ 15V, 25A |
| Power - Max | 250 W | 347 W |
| Switching Energy | 585µJ (on), 260µJ (off) | 930µJ (on), 720µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 105 nC | 170 nC |
| Td (on/off) @ 25°C | 10ns/85ns | 14ns/150ns |
| Test Condition | 800V, 15A, 5Ohm, 15V | 800V, 25A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 [B] | TO-247 [B] |
