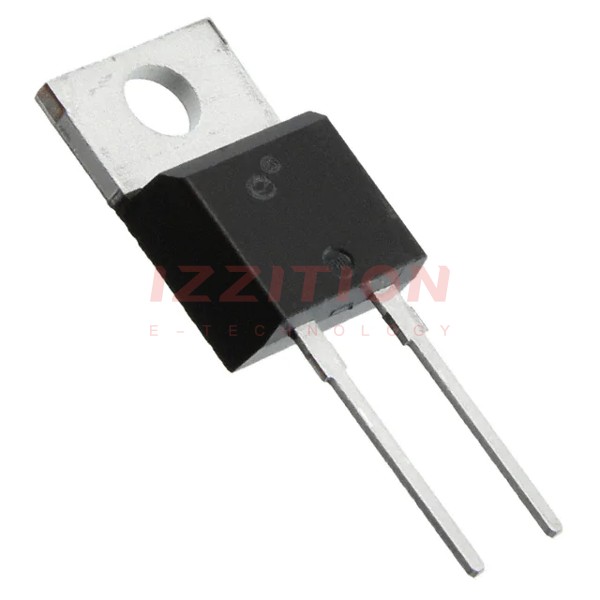

| Part Number | APT15DQ60KG | APT15DQ60SG | APT15D60KG | APT15DQ60BG |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | - | 600 V | 600 V |
| Current - Average Rectified (Io) | 15A | 15A | 15A | 15A |
| Voltage - Forward (Vf) (Max) @ If | 2.4 V @ 15 A | 2.4 V @ 15 A | 1.8 V @ 15 A | 2.4 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 19 ns | 21 ns | 80 ns | 19 ns |
| Current - Reverse Leakage @ Vr | 25 µA @ 600 V | 25 µA @ 600 V | 250 µA @ 600 V | 25 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | TO-220-2 | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-220-2 | TO-247-3 |
| Supplier Device Package | TO-220 [K] | D3PAK | TO-220 [K] | TO-247 [B] |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
