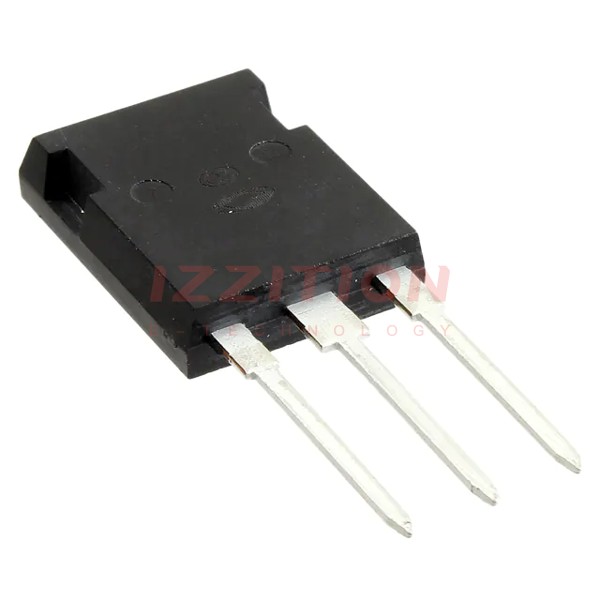

| Part Number | APT13GP120BG | APT13GP120KG |
|---|---|---|
| Manufacturer | Microchip Technology | Microsemi Corporation |
| Product Status | Active | Obsolete |
| IGBT Type | PT | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 41 A | 41 A |
| Current - Collector Pulsed (Icm) | 50 A | 50 A |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 13A | 3.9V @ 15V, 13A |
| Power - Max | 250 W | 250 W |
| Switching Energy | 115µJ (on), 165µJ (off) | 114µJ (on), 165µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 55 nC | 55 nC |
| Td (on/off) @ 25°C | 9ns/28ns | 9ns/28ns |
| Test Condition | 600V, 13A, 5Ohm, 15V | 600V, 13A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-220-3 |
| Supplier Device Package | TO-247 [B] | TO-220 [K] |
