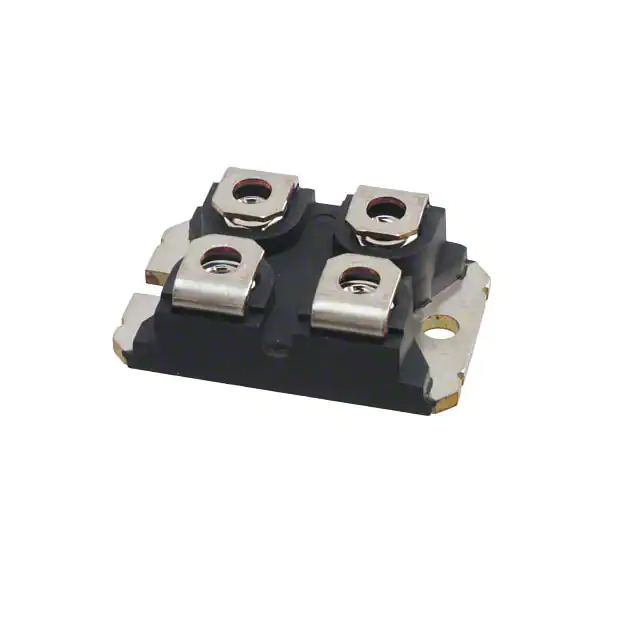

| Part Number | APT12080JVFR | APT12080JVR |
|---|---|---|
| Manufacturer | Microchip Technology | Microsemi Corporation |
| Product Status | Active | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1200 V | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) | 15A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 10V |
| Rds On (Max) @ Id, Vgs | 800mOhm @ 7.5A, 10V | 800mOhm @ 7.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 2.5mA | 4V @ 2.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 485 nC @ 10 V | 485 nC @ 10 V |
| Vgs (Max) | - | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 7800 pF @ 25 V | 7800 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | - | 450W (Tc) |
| Operating Temperature | - | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Supplier Device Package | ISOTOP® | ISOTOP® |
| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
