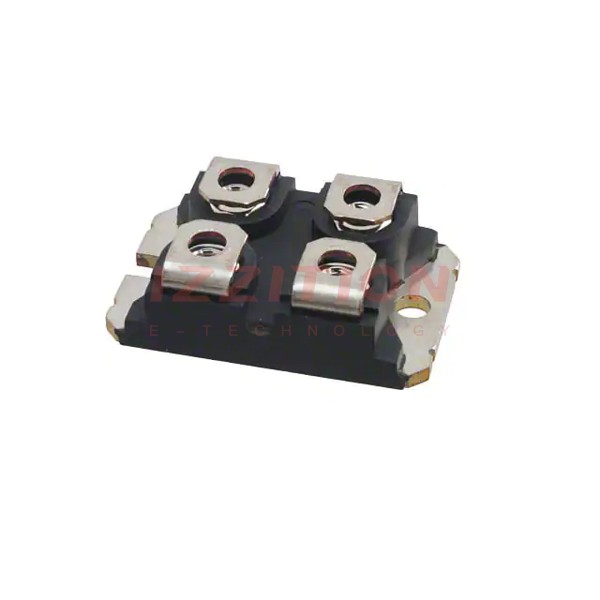

| Part Number | APT10M11JVFR | APT20M11JVFR | APT10M11JVR |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microsemi Corporation |
| Product Status | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 200 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 144A (Tc) | 175A (Tc) | 144A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 11mOhm @ 500mA, 10V | 11mOhm @ 500mA, 10V | - |
| Vgs(th) (Max) @ Id | 4V @ 2.5mA | 4V @ 5mA | 4V @ 2.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 450 nC @ 10 V | 180 nC @ 10 V | 450 nC @ 10 V |
| Vgs (Max) | - | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 10380 pF @ 25 V | 21600 pF @ 25 V | 10300 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | - | 700W (Tc) | 450W (Tc) |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Supplier Device Package | ISOTOP® | ISOTOP® | ISOTOP® |
| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
