Microchip Technology-APT100GT60JRDQ4 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	NPT
Configuration:	Single
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	148 A
Power - Max:	500 W
Vce(on) (Max) @ Vge, Ic:	2.5V @ 15V, 100A
Current - Collector Cutoff (Max):	50 µA
Input Capacitance (Cies) @ Vce:	5.15 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	ISOTOP
Supplier Device Package:	ISOTOP®

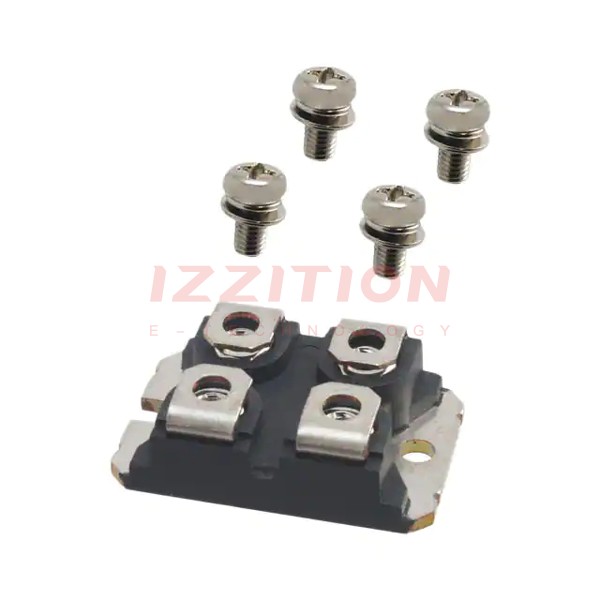

Microchip Technology APT100GT60JRDQ4
