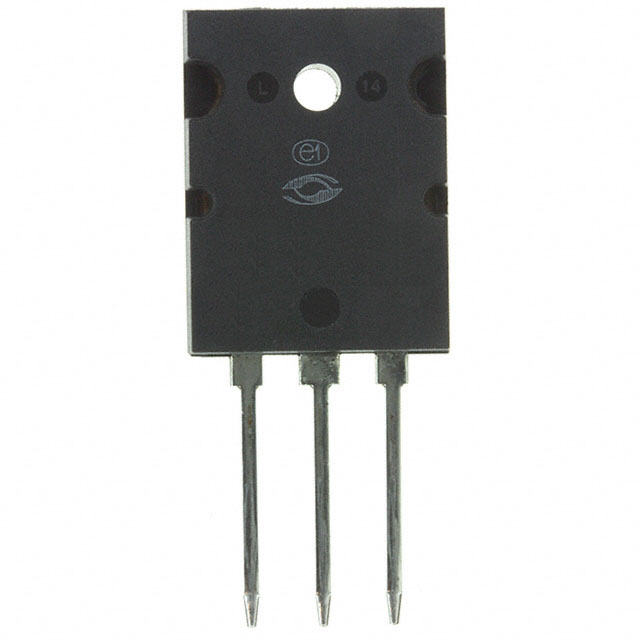

| Part Number | APT100GN60LDQ4G | APT150GN60LDQ4G |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 229 A | 220 A |
| Current - Collector Pulsed (Icm) | 300 A | 450 A |
| Vce(on) (Max) @ Vge, Ic | 1.85V @ 15V, 100A | 1.85V @ 15V, 150A |
| Power - Max | 625 W | 536 W |
| Switching Energy | 4.75mJ (on), 2.675mJ (off) | 8.81mJ (on), 4.295mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 600 nC | 970 nC |
| Td (on/off) @ 25°C | 31ns/310ns | 44ns/430ns |
| Test Condition | 400V, 100A, 1Ohm, 15V | 400V, 150A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-264-3, TO-264AA | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264 [L] | TO-264 [L] |
