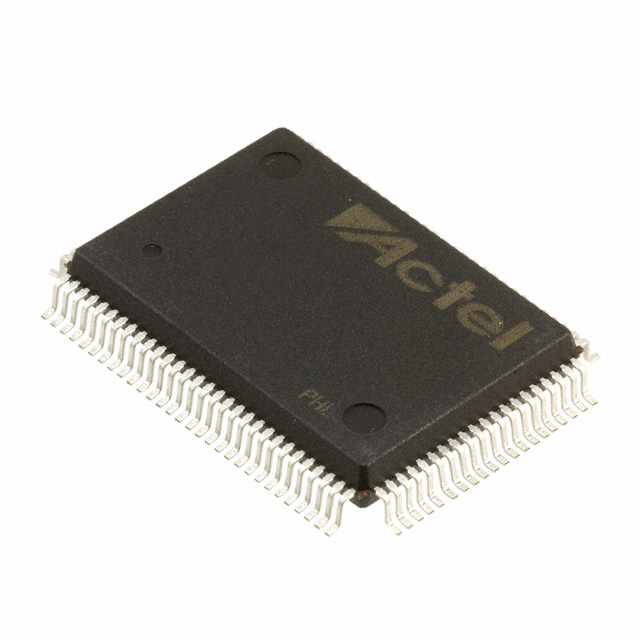

| Part Number | A42MX09-PQ100 | A42MX09-PQG100 | A42MX09-PQ160 | A42MX09-PQ100I | A42MX09-PQ100M | A42MX09-VQ100 | A42MX09-PQ100A | A42MX09-1PQ100 | A42MX09-2PQ100 | A42MX09-3PQ100 | A42MX09-FPQ100 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Number of LABs/CLBs | - | - | - | - | - | - | - | - | - | - | - |
| Number of Logic Elements/Cells | - | - | - | - | - | - | - | - | - | - | - |
| Total RAM Bits | - | - | - | - | - | - | - | - | - | - | - |
| Number of I/O | 83 | 83 | 101 | 83 | 83 | 83 | 83 | 83 | 83 | 83 | 83 |
| Number of Gates | 14000 | 14000 | 14000 | 14000 | 14000 | 14000 | 14000 | 14000 | 14000 | 14000 | 14000 |
| Voltage - Supply | 3V ~ 3.6V, 4.75V ~ 5.25V | 3V ~ 3.6V, 4.75V ~ 5.25V | 3V ~ 3.6V, 4.75V ~ 5.25V | 3V ~ 3.6V, 4.5V ~ 5.5V | 3V ~ 3.6V, 4.5V ~ 5.5V | 3V ~ 3.6V, 4.75V ~ 5.25V | 3V ~ 3.6V, 4.5V ~ 5.5V | 3V ~ 3.6V, 4.75V ~ 5.25V | 3V ~ 3.6V, 4.75V ~ 5.25V | 3V ~ 3.6V, 4.75V ~ 5.25V | 3V ~ 3.6V, 4.75V ~ 5.25V |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | -55°C ~ 125°C (TC) | 0°C ~ 70°C (TA) | -40°C ~ 125°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Package / Case | 100-BQFP | 100-BQFP | 160-BQFP | 100-BQFP | 100-BQFP | 100-TQFP | 100-BQFP | 100-BQFP | 100-BQFP | 100-BQFP | 100-BQFP |
| Supplier Device Package | 100-PQFP (20x14) | 100-PQFP (20x14) | 160-PQFP (28x28) | 100-PQFP (20x14) | 100-PQFP (20x14) | 100-VQFP (14x14) | 100-PQFP (20x14) | 100-PQFP (20x14) | 100-PQFP (20x14) | 100-PQFP (20x14) | 100-PQFP (20x14) |
