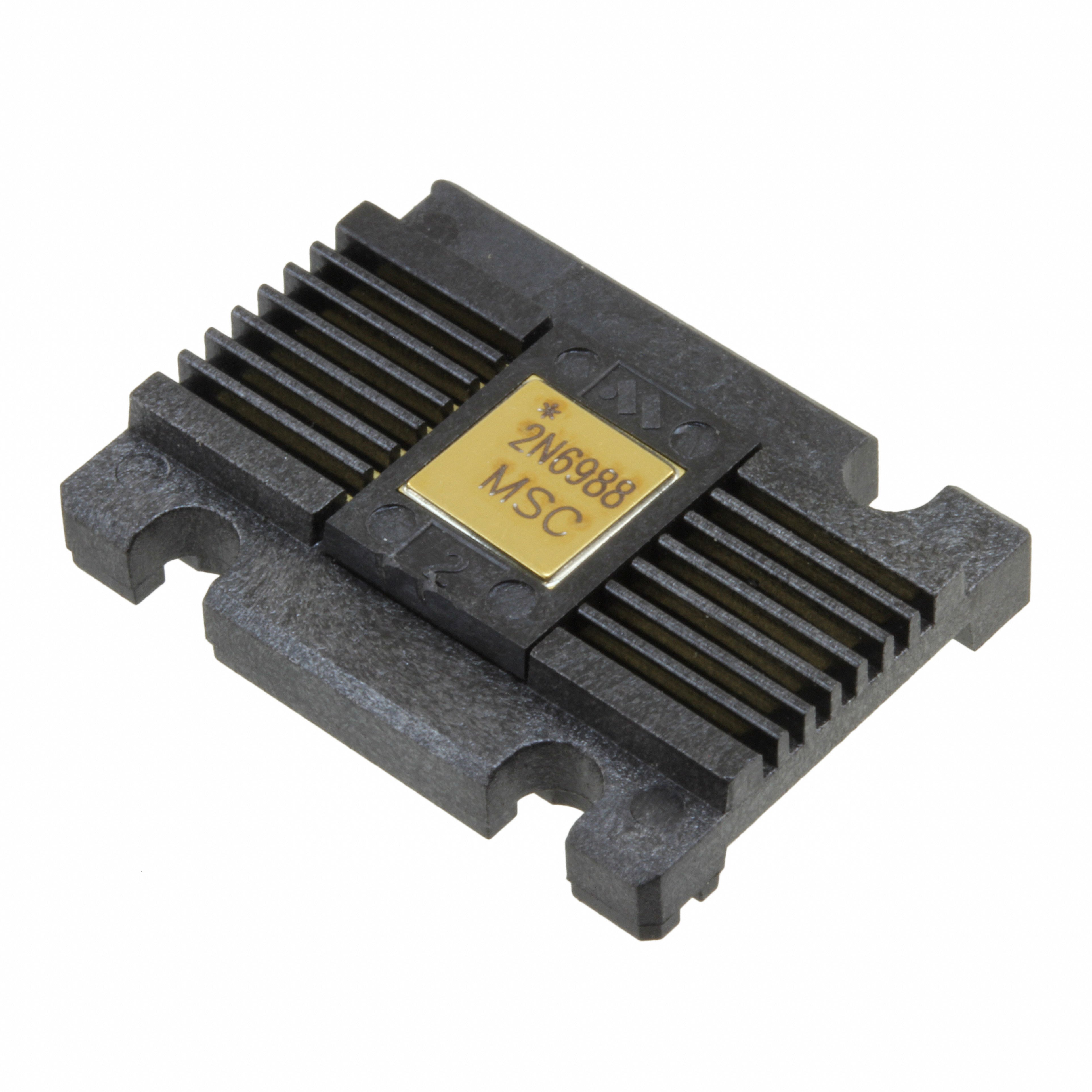

| Part Number | 2N6988 | 2N6989 | 2N6987 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Discontinued at Digi-Key | Active |
| Transistor Type | 4 PNP (Quad) | 4 NPN (Quad) | 4 PNP (Quad) |
| Current - Collector (Ic) (Max) | 600mA | 800mA | 600mA |
| Voltage - Collector Emitter Breakdown (Max) | 60V | 50V | 60V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 50mA, 500mA | 1V @ 50mA, 500mA | 1.6V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 10µA (ICBO) | 10µA (ICBO) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V | 100 @ 150mA, 10V | 100 @ 150mA, 10V |
| Power - Max | 400mW | 1.5W | 1.5W |
| Frequency - Transition | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Surface Mount | Through Hole | Through Hole |
| Package / Case | 14-Flatpack | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-Flatpack | TO-116 | TO-116 |
