Please send RFQ , we will respond immediately.

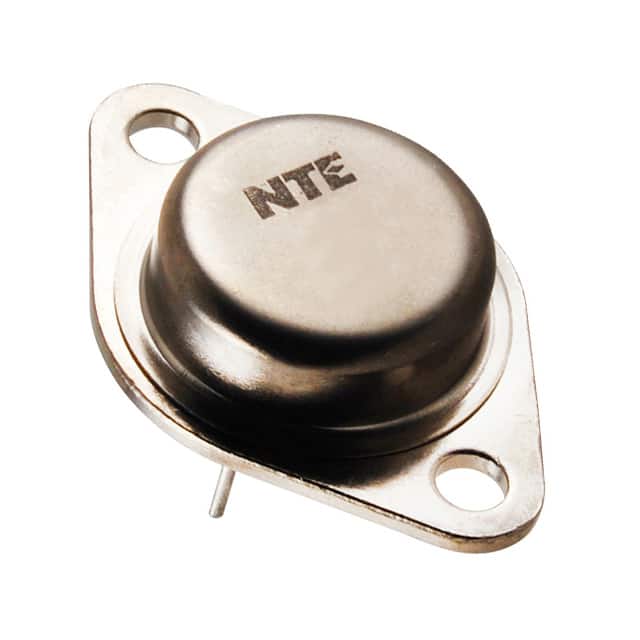

| Part Number | 2N6672 | 2N6772 | 2N6673 | 2N6674 | 2N6675 | 2N6676 | 2N6677 | 2N6671 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Harris Corporation | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Transistor Type | - | NPN | - | - | - | - | NPN | PNP |
| Current - Collector (Ic) (Max) | - | 1 A | - | - | - | - | 15 A | 8 A |
| Voltage - Collector Emitter Breakdown (Max) | - | 550 V | - | - | - | - | 350 V | 300 V |
| Vce Saturation (Max) @ Ib, Ic | - | 1V @ 200mA, 1A | - | - | - | - | 1.5V @ 3A, 15A | - |
| Current - Collector Cutoff (Max) | - | 100µA | - | - | - | - | 100µA | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | 20 @ 300mA, 3V | - | - | - | - | 8 @ 15A, 3V | 10 @ 8A, 300V |
| Power - Max | - | 40 W | - | - | - | - | 175 W | 150 W |
| Frequency - Transition | - | 50MHz | - | - | - | - | 3MHz | - |
| Operating Temperature | - | -65°C ~ 150°C (TJ) | - | - | - | - | -65°C ~ 200°C (TJ) | - |
| Mounting Type | - | Through Hole | - | - | - | - | Through Hole | Through Hole |
| Package / Case | - | TO-220-3 | - | - | - | - | TO-204AA, TO-3 | TO-204AA, TO-3 |
| Supplier Device Package | - | TO-220 | - | - | - | - | TO-204AA (TO-3) | TO-3 |
