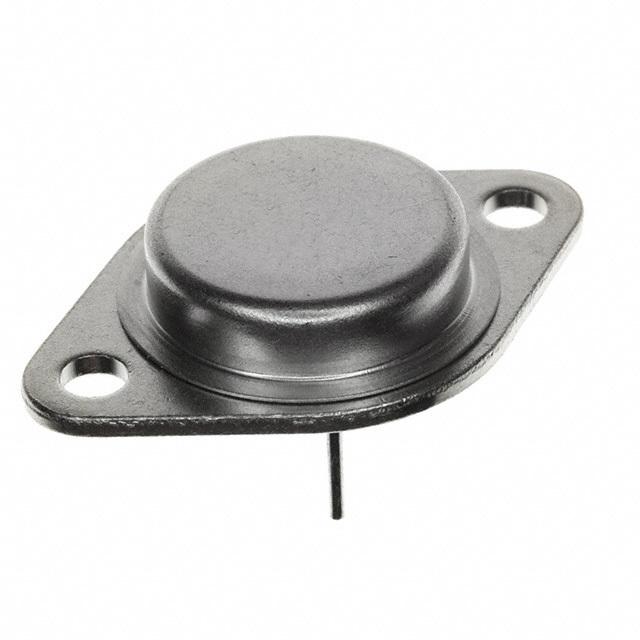

| Part Number | 2N6546 | 2N6547 | 2N656 | 2N6542 | 2N6543 |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | NTE Electronics, Inc | Microchip Technology | Harris Corporation | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Transistor Type | - | NPN | - | NPN | PNP |
| Current - Collector (Ic) (Max) | - | 15 A | - | 5 A | 5 A |
| Voltage - Collector Emitter Breakdown (Max) | - | 400 V | - | 300 V | 400 V |
| Vce Saturation (Max) @ Ib, Ic | - | 5V @ 3A, 15A | - | 5V @ 1A, 5A | - |
| Current - Collector Cutoff (Max) | - | 1mA | - | 500µA | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | 12 @ 5A, 2V | - | 12 @ 1.5A, 2V | - |
| Power - Max | - | 175 W | - | 100 W | 100 W |
| Frequency - Transition | - | 3MHz | - | 28MHz | - |
| Operating Temperature | - | 200°C (TJ) | - | -65°C ~ 200°C (TJ) | - |
| Mounting Type | - | Chassis Mount | - | Through Hole | Through Hole |
| Package / Case | - | TO-204AA, TO-3 | - | TO-204AA, TO-3 | TO-204AA, TO-3 |
| Supplier Device Package | - | TO-3 | - | TO-3 | TO-3 |
