Please send RFQ , we will respond immediately.

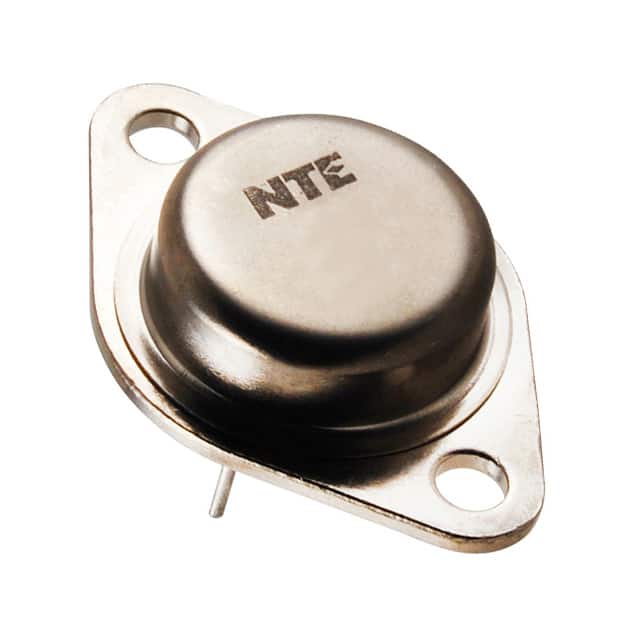

| Part Number | 2N6383 | 2N6387 | 2N6385 | 2N6388 | 2N6384 | 2N6283 | 2N6353 | 2N6373 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Harris Corporation | NTE Electronics, Inc | NTE Electronics, Inc | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Transistor Type | - | NPN - Darlington | NPN - Darlington | NPN - Darlington | - | NPN - Darlington | - | PNP |
| Current - Collector (Ic) (Max) | - | 10 A | 10 A | 10 A | - | 1 mA | - | 6 A |
| Voltage - Collector Emitter Breakdown (Max) | - | 60 V | 80 V | 80 V | - | 80 V | - | 60 V |
| Vce Saturation (Max) @ Ib, Ic | - | 3V @ 100mA, 10A | 3V @ 100mA, 10A | 3V @ 100mA, 10A | - | 3V @ 200mA, 20A | - | - |
| Current - Collector Cutoff (Max) | - | 1mA | 1mA (ICBO) | 1mA | - | 1mA | - | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | 1000 @ 5A, 3V | 1000 @ 5A, 3V | 1000 @ 5A, 3V | - | 1500 @ 1A, 3V | - | - |
| Power - Max | - | 2 W | 6 W | 2 W | - | 175 W | - | 40 W |
| Frequency - Transition | - | - | - | - | - | - | - | - |
| Operating Temperature | - | -65°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) | -65°C ~ 150°C (TJ) | - | -65°C ~ 200°C (TJ) | - | - |
| Mounting Type | - | Through Hole | Through Hole | Through Hole | - | Through Hole | - | Through Hole |
| Package / Case | - | TO-220-3 | TO-204AA, TO-3 | TO-220-3 | - | TO-204AA, TO-3 | - | TO-213AA, TO-66-2 |
| Supplier Device Package | - | TO-220AB | TO-204AA (TO-3) | TO-220 | - | TO-204AA (TO-3) | - | TO-66 (TO-213AA) |
