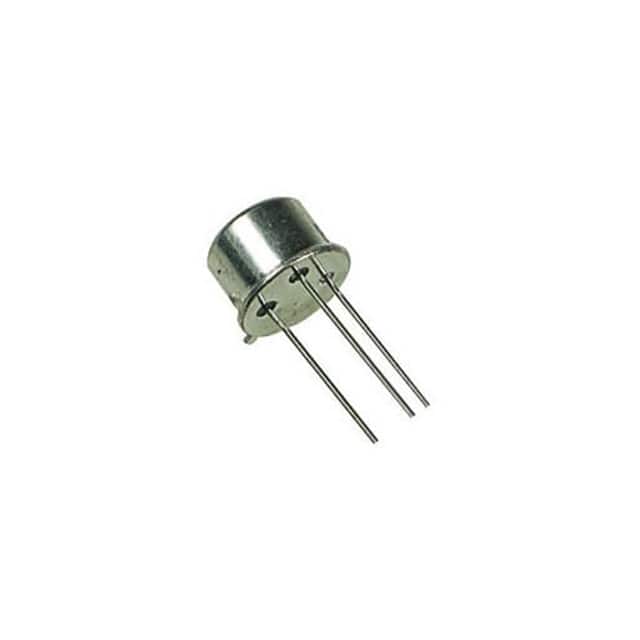

Microchip Technology-2N6232 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2N6232	2N6292	2N6233	2N6235	2N6234	2N6032	2N6212	2N6230	2N6231
Manufacturer	Microchip Technology	NTE Electronics, Inc	Microchip Technology	Microchip Technology	Microchip Technology	Harris Corporation	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Obsolete	Active	Active	Active	Active
Transistor Type	PNP	NPN	NPN	NPN	NPN	NPN	-	-	-
Current - Collector (Ic) (Max)	10 A	7 A	5 A	5 A	5 A	50 A	-	-	-
Voltage - Collector Emitter Breakdown (Max)	100 V	70 V	225 V	300 V	275 V	90 V	-	-	-
Vce Saturation (Max) @ Ib, Ic	-	3.5V @ 3A, 7A	2.5V @ 1A, 5A	2.5V @ 1A, 5A	2.5V @ 1A, 5A	1.3V @ 5A, 50A	-	-	-
Current - Collector Cutoff (Max)	200nA	1mA	1mA	1mA	1mA	10mA	-	-	-
DC Current Gain (hFE) (Min) @ Ic, Vce	25 @ 5A, 2V	30 @ 2A, 4V	25 @ 1A, 5V	25 @ 1A, 5V	25 @ 1A, 5V	10 @ 50A, 2.6V	-	-	-
Power - Max	1.25 W	40 W	50 W	50 W	50 W	140 W	-	-	-
Frequency - Transition	-	4MHz	-	-	-	-	-	-	-
Operating Temperature	-65°C ~ 200°C (TJ)	-65°C ~ 150°C (TJ)	-	-	-	-65°C ~ 200°C (TJ)	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	-	-	-
Package / Case	TO-205AA, TO-5-3 Metal Can	TO-220-3	TO-213AA, TO-66-2	TO-213AA, TO-66-2	TO-213AA, TO-66-2	TO-204AE	-	-	-
Supplier Device Package	TO-5	TO-220	TO-66	TO-66	TO-66	TO-204AE	-	-	-

Transistor Type:	PNP
Current - Collector (Ic) (Max):	10 A
Voltage - Collector Emitter Breakdown (Max):	100 V
Vce Saturation (Max) @ Ib, Ic:	-
Current - Collector Cutoff (Max):	200nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	25 @ 5A, 2V
Power - Max:	1.25 W
Frequency - Transition:	-
Operating Temperature:	-65°C ~ 200°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-205AA, TO-5-3 Metal Can
Supplier Device Package:	TO-5

Microchip Technology 2N6232
