Please send RFQ , we will respond immediately.

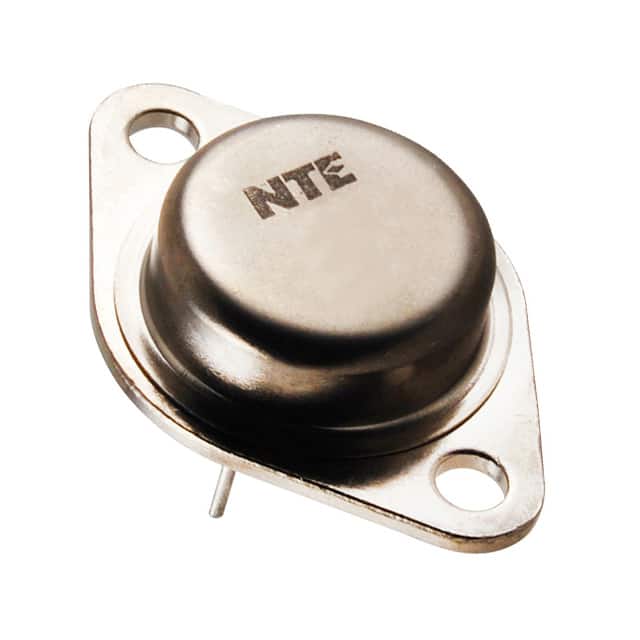

| Part Number | 2N6058 | 2N6059 | 2N6078 | 2N6038 | 2N6048 | 2N6051 | 2N6052 | 2N6057 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | NTE Electronics, Inc | Harris Corporation | onsemi | Microchip Technology | Microchip Technology | NTE Electronics, Inc | NTE Electronics, Inc |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Active | Active | Active |
| Transistor Type | - | NPN - Darlington | NPN | NPN - Darlington | - | - | PNP - Darlington | NPN - Darlington |
| Current - Collector (Ic) (Max) | - | 12 A | 7 A | 4 A | - | - | 12 A | 12 A |
| Voltage - Collector Emitter Breakdown (Max) | - | 100 V | 250 V | 60 V | - | - | 100 V | 60 V |
| Vce Saturation (Max) @ Ib, Ic | - | 3V @ 120mA, 12A | 3V @ 1A, 5A | 3V @ 40mA, 4A | - | - | 3V @ 120mA, 12A | 3V @ 120mA, 12A |
| Current - Collector Cutoff (Max) | - | 1mA | 50µA | 100µA | - | - | 1mA | 1mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | 750 @ 6A, 3V | 12 @ 1.2A, 10V | 750 @ 2A, 3V | - | - | 750 @ 6A, 3V | 750 @ 6A, 3V |
| Power - Max | - | 150 W | 45 W | 40 W | - | - | 150 W | 150 W |
| Frequency - Transition | - | 4MHz | - | - | - | - | - | 4MHz |
| Operating Temperature | - | 200°C (TJ) | 200°C (TJ) | -65°C ~ 150°C (TJ) | - | - | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | - | Chassis Mount | Through Hole | Through Hole | - | - | Through Hole | Through Hole |
| Package / Case | - | TO-204AA, TO-3 | TO-213AA, TO-66-2 | TO-225AA, TO-126-3 | - | - | TO-204AA, TO-3 | TO-204AA, TO-3 |
| Supplier Device Package | - | TO-3 | TO-66 | TO-126 | - | - | TO-204 (TO-3) | TO-3 |
