Please send RFQ , we will respond immediately.
| Part Number | 2N5874 | 2N5879 | 2N5884 | 2N5875 | 2N5876 | 2N5878 | 2N5877 | 2N5804 | 2N5871 | 2N5872 | 2N5873 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Harris Corporation | NTE Electronics, Inc | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Harris Corporation | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Transistor Type | - | PNP | PNP | - | - | - | - | PNP | PNP | - | - |
| Current - Collector (Ic) (Max) | - | 15 A | 25 A | - | - | - | - | 5 A | 7 A | - | - |
| Voltage - Collector Emitter Breakdown (Max) | - | 60 V | 80 V | - | - | - | - | 225 V | 60 V | - | - |
| Vce Saturation (Max) @ Ib, Ic | - | - | 4V @ 6.25A, 25A | - | - | - | - | - | - | - | - |
| Current - Collector Cutoff (Max) | - | 500µA (ICBO) | 2mA | - | - | - | - | - | - | - | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | - | 20 @ 10A, 4V | - | - | - | - | - | 2.5 @ 4A, 20V | - | - |
| Power - Max | - | 160 W | 200 W | - | - | - | - | 62 W | 115 W | - | - |
| Frequency - Transition | - | 4MHz | 4MHz | - | - | - | - | - | 4MHz | - | - |
| Operating Temperature | - | 175°C (TJ) | -65°C ~ 200°C (TJ) | - | - | - | - | - | - | - | - |
| Mounting Type | - | Through Hole | Through Hole | - | - | - | - | Through Hole | Through Hole | - | - |

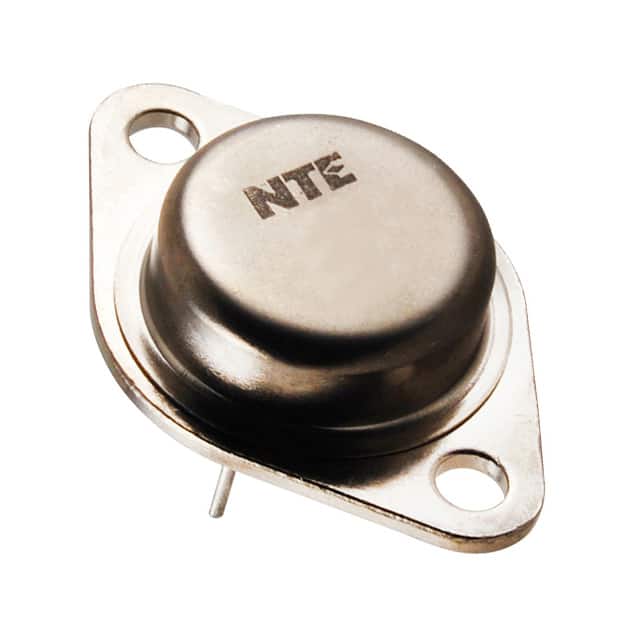

| Package / Case | - | TO-204AA, TO-3 | TO-204AA, TO-3 | - | - | - | - | TO-204AA, TO-3 | TO-204AA, TO-3 | - | - |
| Supplier Device Package | - | TO-3 | TO-204 (TO-3) | - | - | - | - | TO-3 | TO-3 | - | - |
