Microchip Technology-2N5680 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2N5680	2N5685	2N5683	2N5684	2N5682	2N5686	2N5681	2N5680L	2N5880
Manufacturer	Microchip Technology	NTE Electronics, Inc	NTE Electronics, Inc	NTE Electronics, Inc	Solid State Inc.	NTE Electronics, Inc	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active
Transistor Type	PNP	NPN	PNP	PNP	NPN	NPN	-	-	-
Current - Collector (Ic) (Max)	1 A	50 A	50 A	50 A	-	50 A	-	-	-
Voltage - Collector Emitter Breakdown (Max)	120 V	60 V	60 V	80 V	120 V	80 V	-	-	-
Vce Saturation (Max) @ Ib, Ic	1V @ 50mA, 500mA	5V @ 10A, 50A	5V @ 10A, 50A	5V @ 10A, 50A	-	1V @ 2.5A, 25A	-	-	-
Current - Collector Cutoff (Max)	10µA	1mA	1mA	1mA	-	1mA	-	-	-
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 250mA, 2V	15 @ 25A, 2V	15 @ 25A, 2V	15 @ 25A, 2V	-	15 @ 25A, 2V	-	-	-
Power - Max	1 W	300 W	300 W	300 W	-	300 W	-	-	-
Frequency - Transition	-	2MHz	2MHz	2MHz	-	2MHz	-	-	-
Operating Temperature	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)	-	-65°C ~ 200°C (TJ)	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	-	-	-
Package / Case	TO-205AD, TO-39-3 Metal Can	TO-204AA, TO-3	TO-204AA, TO-3	TO-204AE	TO-205AD, TO-39-3 Metal Can	TO-204AE	-	-	-
Supplier Device Package	TO-39 (TO-205AD)	TO-3	TO-3	TO-204 (TO-3)	TO-39	TO-204 (TO-3)	-	-	-

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	120 V
Vce Saturation (Max) @ Ib, Ic:	1V @ 50mA, 500mA
Current - Collector Cutoff (Max):	10µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	40 @ 250mA, 2V
Power - Max:	1 W
Frequency - Transition:	-
Operating Temperature:	-65°C ~ 200°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-205AD, TO-39-3 Metal Can
Supplier Device Package:	TO-39 (TO-205AD)

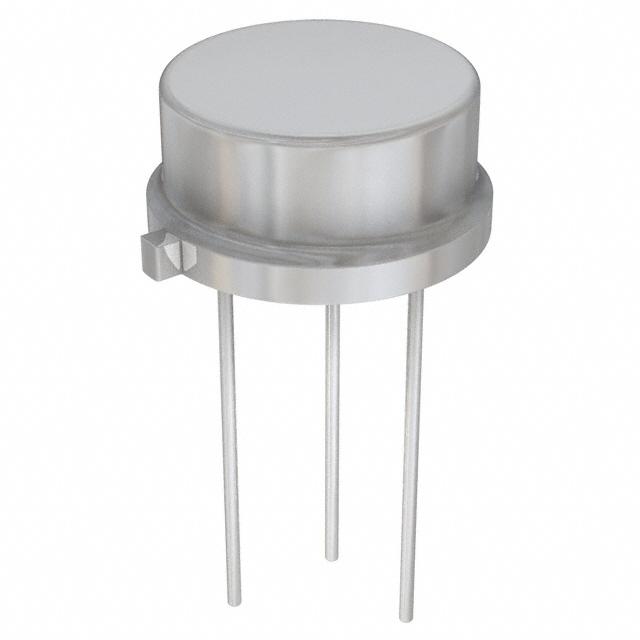

Microchip Technology 2N5680
