Please send RFQ , we will respond immediately.
| Part Number | 2N5672 | 2N5682 | 2N5772 | 2N5679 | 2N5872 | 2N5671 |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Solid State Inc. | Fairchild Semiconductor | Microchip Technology | Microchip Technology | Harris Corporation |
| Product Status | Active | Active | Obsolete | Active | Active | Active |
| Transistor Type | NPN | NPN | NPN | PNP | - | NPN |
| Current - Collector (Ic) (Max) | 30 A | - | 300 mA | 10 µA | - | 30 A |
| Voltage - Collector Emitter Breakdown (Max) | 120 V | 120 V | 15 V | 100 V | - | 90 V |
| Vce Saturation (Max) @ Ib, Ic | 5V @ 6A, 30A | - | 500mV @ 3mA, 300mA | 1V @ 50mA, 500mA | - | 5V @ 6A, 30A |
| Current - Collector Cutoff (Max) | 10mA | - | 500nA | 10µA | - | 10mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 20A, 5V | - | 30 @ 30mA, 400mV | 40 @ 250mA, 2V | - | 20 @ 20A, 5V |
| Power - Max | 6 W | - | 350 mW | 1 W | - | 6 W |
| Frequency - Transition | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | - | -55°C ~ 150°C (TJ) | -65°C ~ 200°C (TJ) | - | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | - | Through Hole |

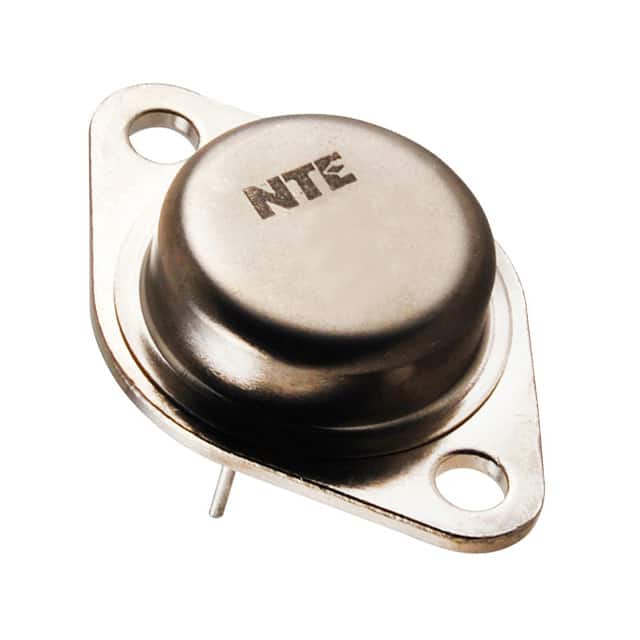

| Package / Case | TO-204AA, TO-3 | TO-205AD, TO-39-3 Metal Can | TO-226-3, TO-92-3 (TO-226AA) | TO-205AD, TO-39-3 Metal Can | - | TO-204AA, TO-3 |
| Supplier Device Package | TO-3 | TO-39 | TO-92-3 | TO-39 (TO-205AD) | - | TO-3 |
