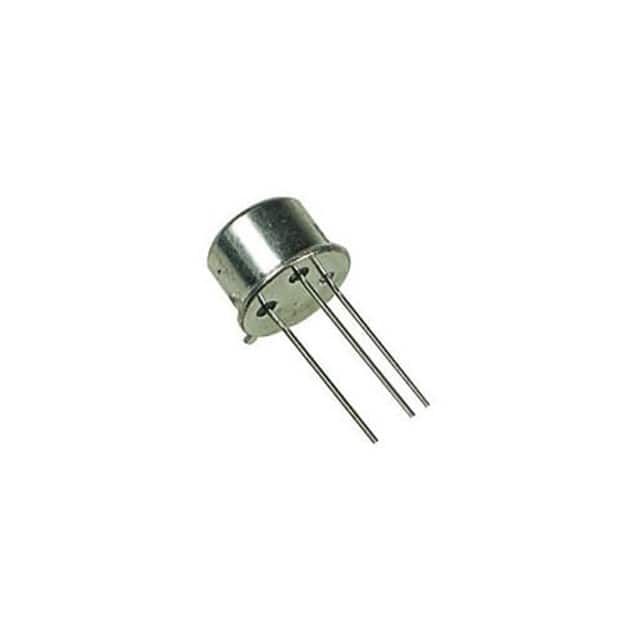

| Part Number | 2N3762 | 2N3772 | 2N3792 | 2N3764 | 2N3765 | 2N3766 | 2N3767 | 2N3763 | 2N3762L | 2N3702 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | NTE Electronics, Inc | NTE Electronics, Inc | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Transistor Type | PNP | NPN | PNP | - | - | NPN | NPN | - | - | PNP |
| Current - Collector (Ic) (Max) | 1.5 A | 20 A | 10 A | - | - | 500 µA | 500 µA | - | - | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V | 60 V | 80 V | - | - | 60 V | 80 V | - | - | 25 V |
| Vce Saturation (Max) @ Ib, Ic | 900mV @ 100mA, 1A | 1.4V @ 1A, 10A | 1V @ 500mA, 5A | - | - | 2.5V @ 100mA, 1A | 2.5V @ 100mA, 1A | - | - | 250mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 10µA (ICBO) | 10mA | 5mA | - | - | 500µA | 500µA | - | - | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 1A, 1.5V | 15 @ 10A, 4V | 50 @ 1A, 2V | - | - | 40 @ 500mA, 5V | 40 @ 500mA, 5V | - | - | 60 @ 50mA, 5V |
| Power - Max | 1 W | 150 W | 150 W | - | - | 25 W | 25 W | - | - | 625 mW |
| Frequency - Transition | - | 200kHz | - | - | - | - | - | - | - | 100MHz |
| Operating Temperature | -55°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | - | - | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | - | - | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | - | - | Through Hole | Through Hole | - | - | Through Hole |
| Package / Case | TO-205AD, TO-39-3 Metal Can | TO-204AA, TO-3 | TO-204AA, TO-3 | - | - | TO-213AA, TO-66-2 | TO-213AA, TO-66-2 | - | - | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-39 (TO-205AD) | TO-204 (TO-3) | TO-3 | - | - | TO-66 (TO-213AA) | TO-66 (TO-213AA) | - | - | TO-92-3 |
