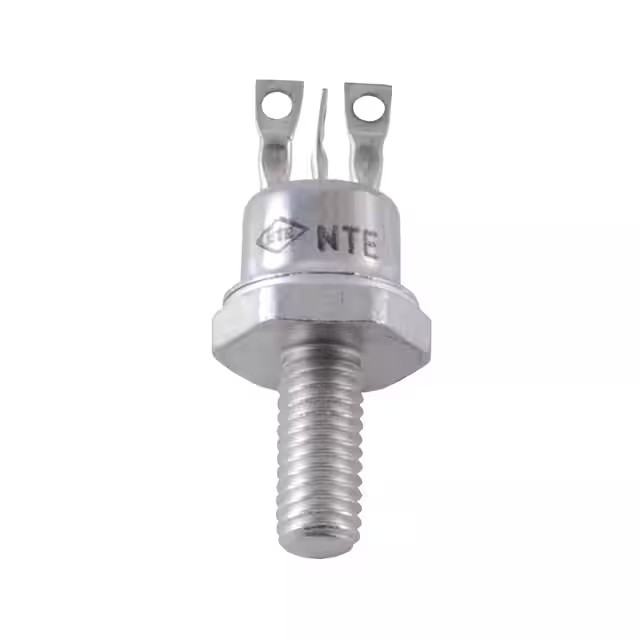

Microchip Technology-2N3749 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2N3749	2N3719	2N3739	2N3740	2N3741	2N3743
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Active	Active
Transistor Type	NPN	PNP	NPN	-	-	-
Current - Collector (Ic) (Max)	5 A	10 µA	1 A	-	-	-
Voltage - Collector Emitter Breakdown (Max)	80 V	40 V	300 V	-	-	-
Vce Saturation (Max) @ Ib, Ic	1.5V @ 500mA, 5A	1.5V @ 300mA, 3A	2.5V @ 25mA, 250mA	-	-	-
Current - Collector Cutoff (Max)	20µA	10µA	100µA (ICBO)	-	-	-
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 1A, 2V	25 @ 1A, 1.5V	25 @ 250mA, 10V	-	-	-
Power - Max	2 W	6 W	20 W	-	-	-
Frequency - Transition	-	60MHz	-	-	-	-
Operating Temperature	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)	-55°C ~ 200°C (TJ)	-	-	-
Mounting Type	Stud Mount	Through Hole	Through Hole	-	-	-
Package / Case	TO-111-4, Stud	TO-205AA, TO-5-3 Metal Can	TO-213AA, TO-66-2	-	-	-
Supplier Device Package	TO-111	TO-5	TO-66 (TO-213AA)	-	-	-

Transistor Type:	NPN
Current - Collector (Ic) (Max):	5 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	1.5V @ 500mA, 5A
Current - Collector Cutoff (Max):	20µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	40 @ 1A, 2V
Power - Max:	2 W
Frequency - Transition:	-
Operating Temperature:	-65°C ~ 200°C (TJ)
Mounting Type:	Stud Mount
Package / Case:	TO-111-4, Stud
Supplier Device Package:	TO-111

Microchip Technology 2N3749
