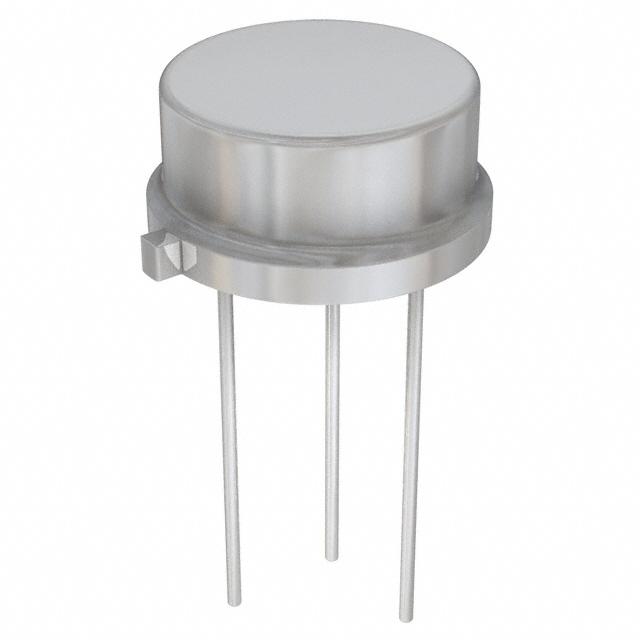

| Part Number | 2N3735 | 2N3735L | 2N3765 | 2N3738 | 2N3739 | 2N3737 | 2N335 | 2N3715 | 2N3725 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | National Semiconductor |
| Product Status | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Active | Active | Active |
| Transistor Type | NPN | NPN | - | PNP | NPN | NPN | - | NPN | NPN |
| Current - Collector (Ic) (Max) | 1.5 A | 1.5 A | - | 1 A | 1 A | 1.5 A | - | 1 mA | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 40 V | 40 V | - | 225 V | 300 V | 40 V | - | 60 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 900mV @ 100mA, 1A | 900mV @ 100mA, 1A | - | - | 2.5V @ 25mA, 250mA | 900mV @ 100mA, 1A | - | 2.5V @ 2A, 10A | 950mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 10µA (ICBO) | 10µA (ICBO) | - | - | 100µA (ICBO) | 10µA (ICBO) | - | 1mA | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 1A, 1.5V | 20 @ 1A, 1.5V | - | - | 25 @ 250mA, 10V | 20 @ 1A, 1.5V | - | 50 @ 1A, 2V | 60 @ 100mA, 1V |
| Power - Max | 1 W | 1 W | - | 20 W | 20 W | 500 mW | - | 5 W | 800 mW |
| Frequency - Transition | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | - | - | -55°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | - | -65°C ~ 200°C (TJ) | - |
| Mounting Type | Through Hole | Through Hole | - | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-205AD, TO-39-3 Metal Can | TO-205AA, TO-5-3 Metal Can | - | TO-213AA, TO-66-2 | TO-213AA, TO-66-2 | TO-206AB, TO-46-3 Metal Can | TO-205AA, TO-5-3 Metal Can | TO-204AA, TO-3 | TO-205AA, TO-5-3 Metal Can |
| Supplier Device Package | TO-39 (TO-205AD) | TO-5 | - | TO-66 (TO-213AA) | TO-66 (TO-213AA) | TO-46-3 | TO-5 | TO-3 | TO-5 |
