Microchip Technology-2N2484UB - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN
Current - Collector (Ic) (Max):	50 mA
Voltage - Collector Emitter Breakdown (Max):	60 V
Vce Saturation (Max) @ Ib, Ic:	300mV @ 100µA, 1mA
Current - Collector Cutoff (Max):	2nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	225 @ 10mA, 5V
Power - Max:	360 mW
Frequency - Transition:	-
Operating Temperature:	-65°C ~ 200°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	3-SMD, No Lead
Supplier Device Package:	UB

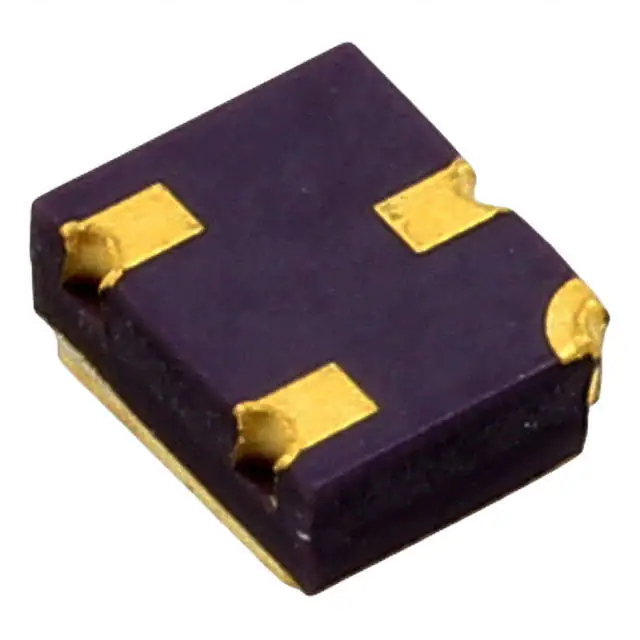

Microchip Technology 2N2484UB
