Microchip Technology-2N2219AL - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2N2219AL	2N2218AL	2N2219A
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Discontinued at Digi-Key	Active	Active
Transistor Type	NPN	NPN	NPN
Current - Collector (Ic) (Max)	800 mA	800 mA	800 mA
Voltage - Collector Emitter Breakdown (Max)	50 V	50 V	50 V
Vce Saturation (Max) @ Ib, Ic	1V @ 50mA, 500mA	1V @ 50mA, 500mA	1V @ 50mA, 500mA
Current - Collector Cutoff (Max)	10nA	10nA	10nA
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 10V	40 @ 150mA, 10V	100 @ 150mA, 10V
Power - Max	800 mW	800 mW	800 mW
Frequency - Transition	-	-	-
Operating Temperature	-55°C ~ 200°C (TJ)	-55°C ~ 200°C (TJ)	-55°C ~ 200°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can	TO-205AA, TO-5-3 Metal Can	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-39 (TO-205AD)	TO-5	TO-39 (TO-205AD)

Transistor Type:	NPN
Current - Collector (Ic) (Max):	800 mA
Voltage - Collector Emitter Breakdown (Max):	50 V
Vce Saturation (Max) @ Ib, Ic:	1V @ 50mA, 500mA
Current - Collector Cutoff (Max):	10nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	100 @ 150mA, 10V
Power - Max:	800 mW
Frequency - Transition:	-
Operating Temperature:	-55°C ~ 200°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-205AD, TO-39-3 Metal Can
Supplier Device Package:	TO-39 (TO-205AD)

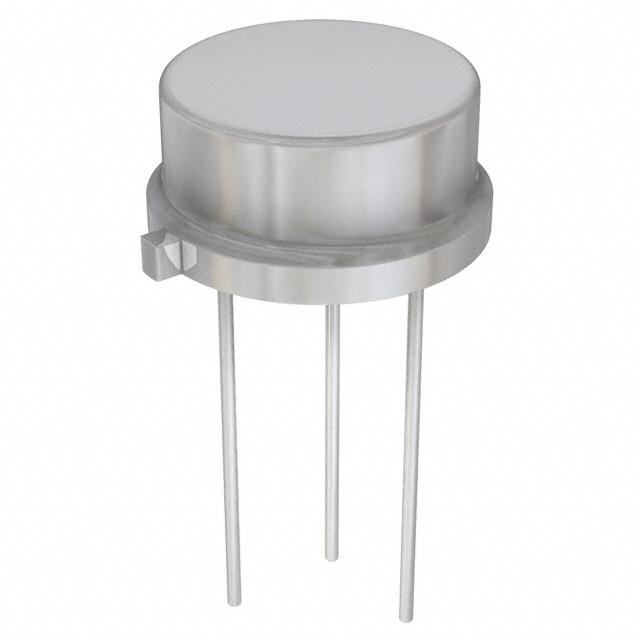

Microchip Technology 2N2219AL
