Please send RFQ , we will respond immediately.

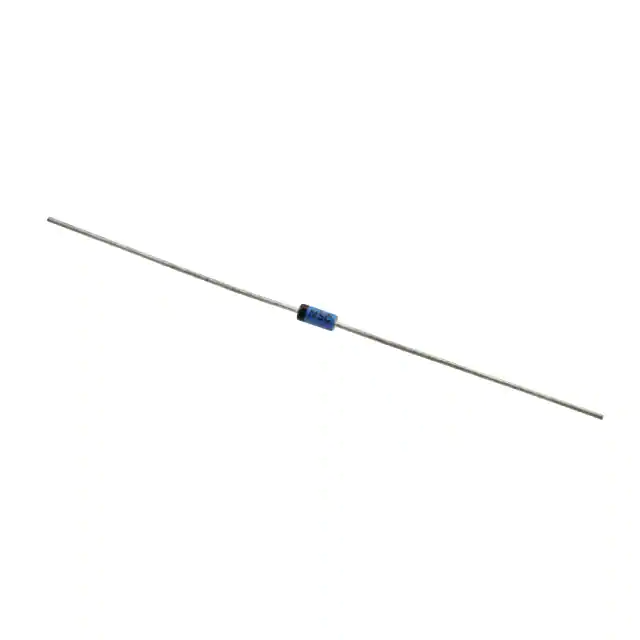

| Part Number | 1N969B/TR | 1N979B/TR | 1N969BTR | 1N959B/TR | 1N960B/TR | 1N961B/TR | 1N962B/TR | 1N963B/TR | 1N964B/TR | 1N965B/TR | 1N966B/TR | 1N967B/TR | 1N968B/TR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | onsemi | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Obsolete | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 22 V | 56 V | 22 V | 8.2 V | 9.1 V | 10 V | 11 V | 12 V | 13 V | 15 V | 16 V | 18 V | 20 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 29 Ohms | 150 Ohms | 29 Ohms | 6.5 Ohms | 7.5 Ohms | 8.5 Ohms | 9.5 Ohms | 11.5 Ohms | 13 Ohms | 16 Ohms | 17 Ohms | 21 Ohms | 25 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 16.7 V | 5 µA @ 42.6 V | 5 µA @ 16.7 V | 50 µA @ 6.2 V | 25 µA @ 6.9 V | 10 µA @ 7.6 V | 5 µA @ 8.4 V | 5 µA @ 9.1 V | 5 µA @ 9.9 V | 5 µA @ 11.4 V | 5 µA @ 12.2 V | 5 µA @ 13.7 V | 5 µA @ 15.2 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | - | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 200°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AH, DO-35, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial |
| Supplier Device Package | DO-7 | DO-7 | DO-35 | DO-7 (DO-204AA) | DO-7 (DO-204AA) | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 |
