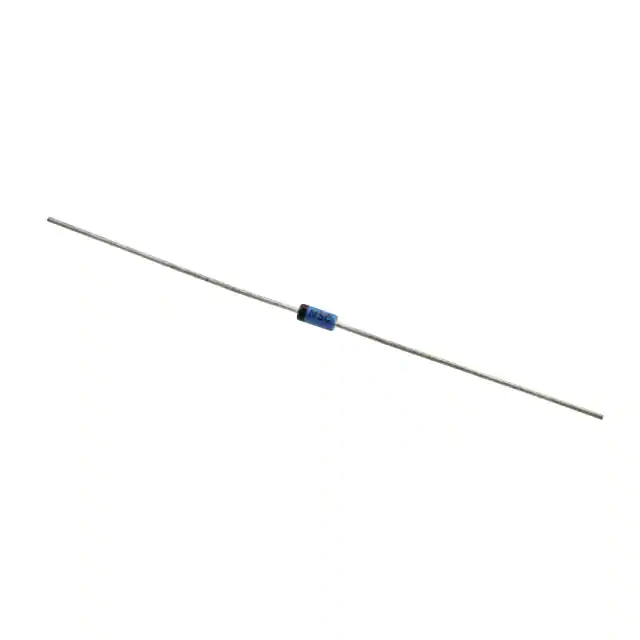

| Part Number | 1N965A/TR | 1N965B/TR | 1N967A/TR | 1N935A/TR | 1N945A/TR | 1N962A/TR |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 15 V | 15 V | 18 V | 9 V | 11.7 V | 11 V |
| Tolerance | ±10% | ±5% | ±10% | ±5% | ±5% | ±10% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 16 Ohms | 16 Ohms | 21 Ohms | 20 Ohms | 30 Ohms | 9.5 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 11.4 V | 5 µA @ 11.4 V | 5 µA @ 13.7 V | - | 15 µA @ 8 V | 5 µA @ 8.4 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | - | - | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -55°C ~ 100°C | -65°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AH, DO-35, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial |
| Supplier Device Package | DO-7 | DO-7 | DO-7 | DO-35 (DO-204AH) | DO-7 (DO-204AA) | DO-7 |
