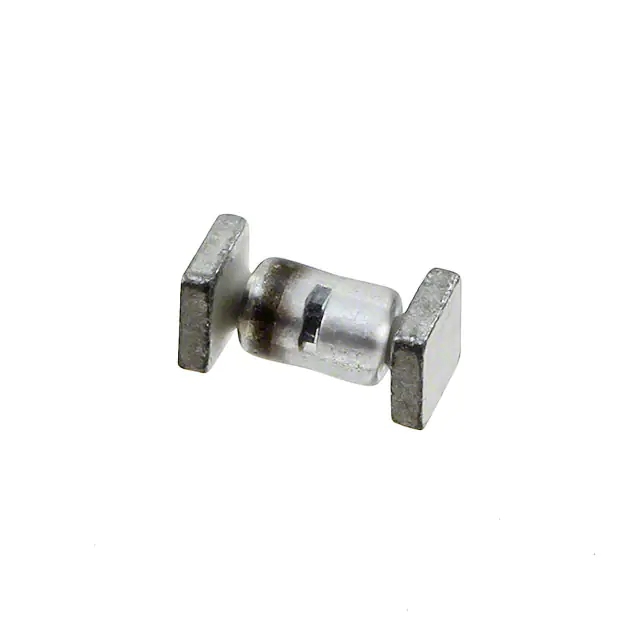

| Part Number | 1N6643US | 1N6663US | 1N6623US | 1N6640US | 1N6642US |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 50 V | 600 V | 880 V | 75 V | 75 V |
| Current - Average Rectified (Io) | 300mA | 500mA (DC) | 1A | 300mA (DC) | 300mA |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA | 1 V @ 400 mA | 1.55 V @ 1 A | 1 V @ 200 mA | 1.2 V @ 100 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 20 ns | - | 50 ns | 4 ns | 5 ns |
| Current - Reverse Leakage @ Vr | 50 nA @ 50 V | 50 nA @ 600 V | 500 nA @ 880 V | 100 nA @ 50 V | 500 nA @ 75 V |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz | - | 10pF @ 10V, 1MHz | - | 5pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, B | SQ-MELF, A | SQ-MELF, A | SQ-MELF, D | SQ-MELF, D |
| Supplier Device Package | D-5B | D-5A | A-MELF | D-5D | D-5D |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 150°C | -65°C ~ 175°C | -65°C ~ 175°C |
