Please send RFQ , we will respond immediately.

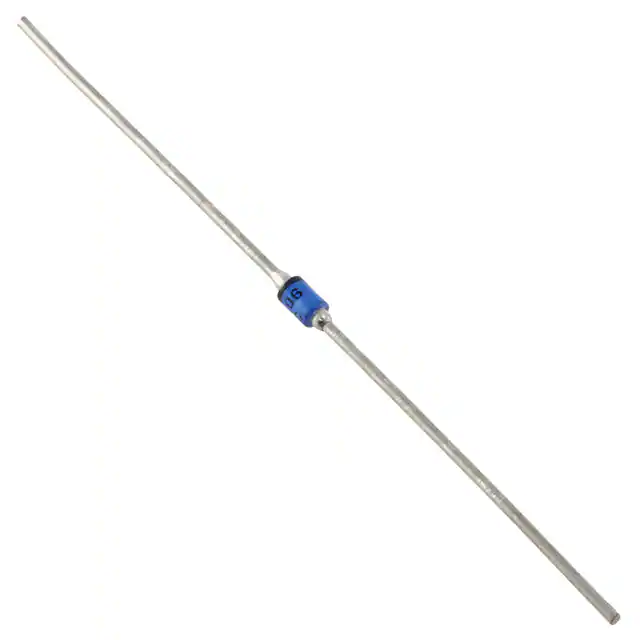

| Part Number | 1N6630 | 1N6639 | 1N6631 | 1N6620 |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Discontinued at Digi-Key | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 990 V | 75 V | 1100 V | 220 V |
| Current - Average Rectified (Io) | 1.4A | 300mA | 1.4A | 1.2A |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 1.4 A | 1.2 V @ 500 mA | 1.4 V @ 1.4 A | 1.4 V @ 1.2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns | 4 ns | 60 ns | 30 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 990 V | - | 4 µA @ 1100 V | 500 nA @ 220 V |
| Capacitance @ Vr, F | 40pF @ 10V, 1MHz | - | 40pF @ 10V, 1MHz | 10pF @ 10V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | A, Axial | DO-204AH, DO-35, Axial | A, Axial | A, Axial |
| Supplier Device Package | - | DO-35 (DO-204AH) | - | - |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 175°C | -65°C ~ 150°C | -65°C ~ 150°C |
