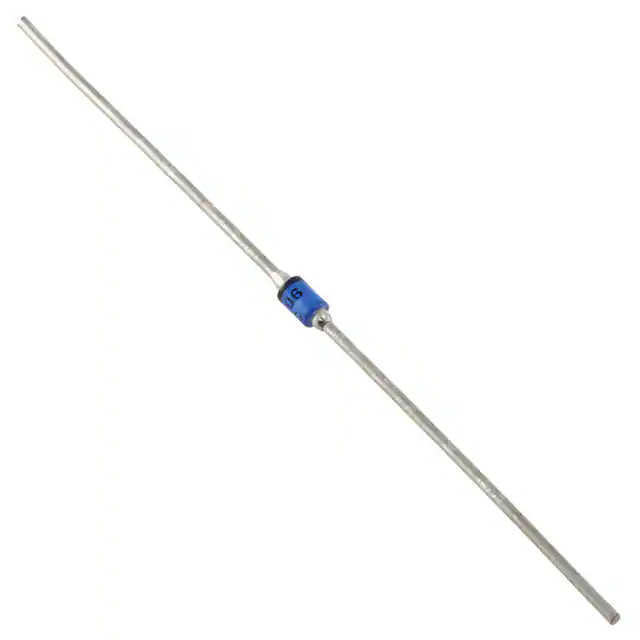

| Part Number | 1N6620 | 1N6623 | 1N6628 | 1N6626 | 1N6627 | 1N6630 | 1N6625 | 1N6622 | 1N6621 | 1N6629 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microsemi Corporation |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 220 V | 880 V | 600 V | 220 V | 440 V | 990 V | 1100 V | 600 V | 440 V | 880 V |
| Current - Average Rectified (Io) | 1.2A | 1A | 1.75A | 1.75A | 1.75A | 1.4A | 1A | 1.2A | 1.2A | 1.4A |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 1.2 A | 1.55 V @ 1 A | 1.35 V @ 2 A | 1.35 V @ 2 A | 1.35 V @ 2 A | 1.4 V @ 1.4 A | 1.75 V @ 1 A | 1.4 V @ 1.2 A | 1.4 V @ 1.2 A | 1.4 V @ 1.4 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns | 50 ns | 45 ns | 30 ns | 30 ns | 50 ns | 60 ns | 45 ns | 30 ns | 50 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 220 V | 500 nA @ 880 V | 2 µA @ 600 V | 2 µA @ 220 V | 2 µA @ 440 V | 2 µA @ 990 V | 1 µA @ 1100 V | 500 nA @ 600 V | 500 nA @ 440 V | 2 µA @ 880 V |
| Capacitance @ Vr, F | 10pF @ 10V, 1MHz | 10pF @ 10V, 1MHz | - | 40pF @ 10V, 1MHz | 40pF @ 10V, 1MHz | 40pF @ 10V, 1MHz | 10pF @ 10V, 1MHz | - | 10pF @ 10V, 1MHz | 40pF @ 10V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | A, Axial | A, Axial | A, Axial | A, Axial | A, Axial | A, Axial | A, Axial | A, Axial | A, Axial | A, Axial |
| Supplier Device Package | - | - | A-PAK | - | - | - | - | A-PAK | - | - |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
