Microchip Technology-1N6536 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	400 V
Current - Average Rectified (Io):	1A (DC)
Voltage - Forward (Vf) (Max) @ If:	1.5 V @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	30 ns
Current - Reverse Leakage @ Vr:	10 µA @ 400 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	A, Axial
Supplier Device Package:	A, Axial
Operating Temperature - Junction:	-

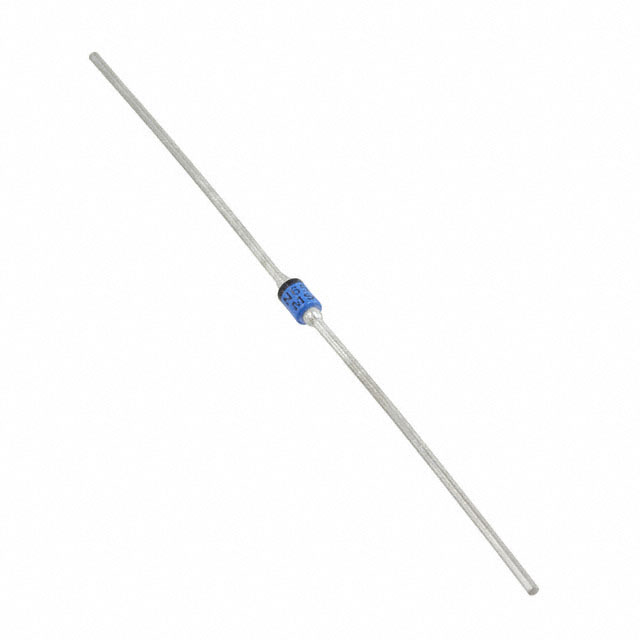

Microchip Technology 1N6536
