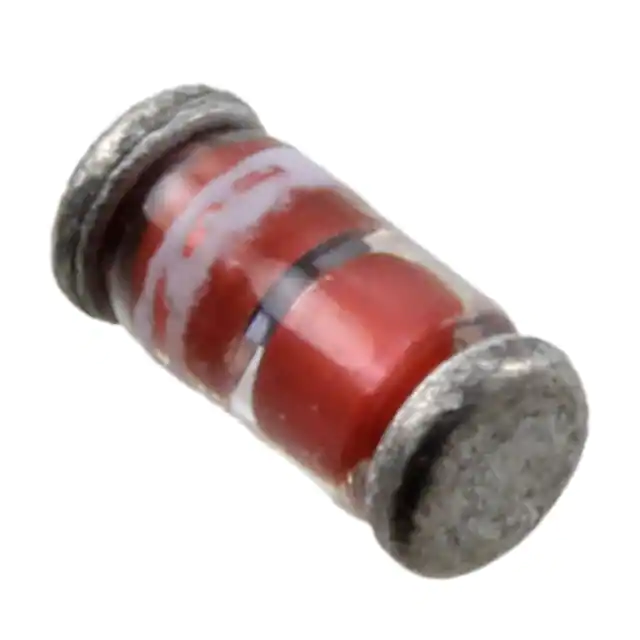

| Part Number | 1N649UR-1 | 1N645UR-1 | 1N647UR-1 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Discontinued at Digi-Key | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 225 V | 400 V |
| Current - Average Rectified (Io) | 400mA | 400mA | 400mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 400 mA | 1 V @ 400 mA | 1 V @ 400 mA |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 50 nA @ 600 V | 50 nA @ 225 V | 50 nA @ 400 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AA (Glass) | DO-213AA | DO-213AA (Glass) |
| Supplier Device Package | DO-213AA | DO-213AA | DO-213AA |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
