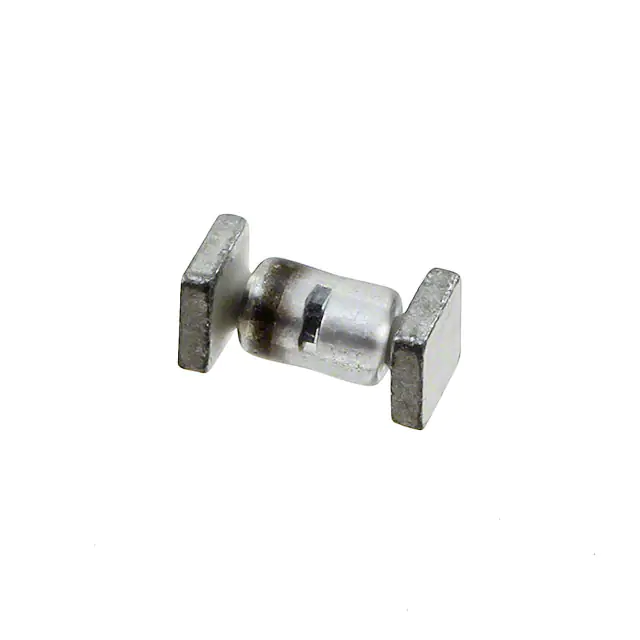

| Part Number | 1N6464US | 1N6466US | 1N6467US | 1N6468US | 1N6461US | 1N6462US | 1N6463US |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 15V | 30.5V | 40.3V | 51.6V | 5V | 6V | 12V |
| Voltage - Breakdown (Min) | 16.4V | 33V | 43.7V | 54V | 5.6V | 6.5V | 13.6V |
| Voltage - Clamping (Max) @ Ipp | 26.5V | 47.5V | 63.5V | 78.5V | 9V | 11V | 22.6V |
| Current - Peak Pulse (10/1000µs) | 107A (8/20µs) | 63A (8/20µs) | 45A (8/20µs) | 35A (8/20µs) | 315A (8/20µs) | 258A (8/20µs) | 125A (8/20µs) |
| Power - Peak Pulse | 500W | 500W | 500W | 500W | 500W | 500W | 500W |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B |
| Supplier Device Package | B, SQ-MELF | B, SQ-MELF | B, SQ-MELF | B, SQ-MELF | B, Axial | B, SQ-MELF | B, SQ-MELF |
