Please send RFQ , we will respond immediately.

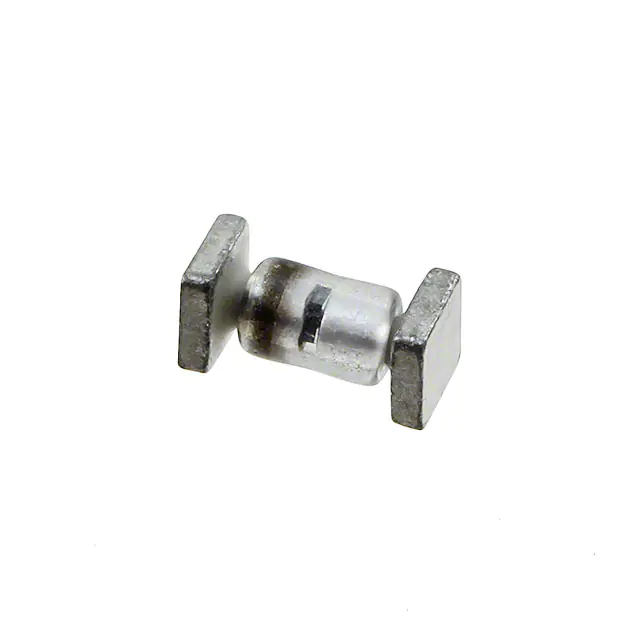

| Part Number | 1N6332US | 1N6335US | 1N6632US | 1N6334US |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Voltage - Zener (Nom) (Vz) | 22 V | 30 V | 3.3 V | 27 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 500 mW | 500 mW | 5 W | 500 mW |
| Impedance (Max) (Zzt) | 500 Ohms | 500 Ohms | 500 Ohms | 27 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 17 V | 50 nA @ 23 V | 300 µA @ 1 V | 50 nA @ 21 V |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 1 A | 1.4 V @ 1 A | 1.5 V @ 1 A | 1.4 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B |
| Supplier Device Package | B, SQ-MELF | B, SQ-MELF | D-5B | B, SQ-MELF |
