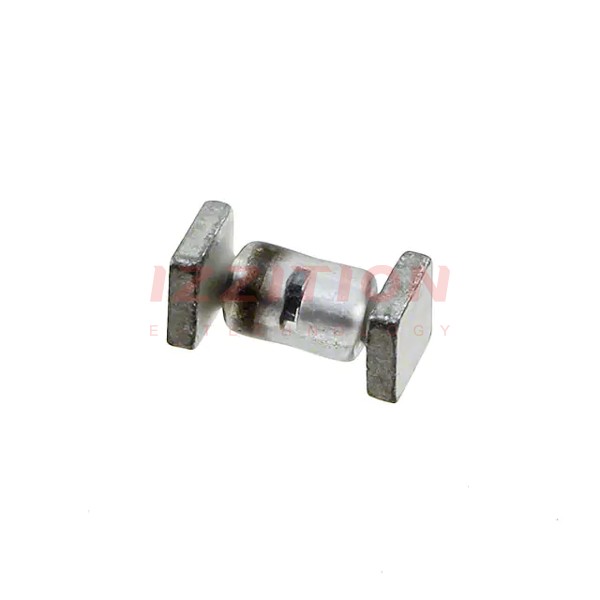

| Part Number | 1N6119AUS/TR | 1N6109AUS/TR | 1N6110AUS/TR | 1N6113AUS/TR | 1N6114AUS/TR | 1N6117AUS/TR |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 27.4V | 9.9V | 11.4V | 15.2V | 16.7V | 22.8V |
| Voltage - Breakdown (Min) | 34.2V | 12.35V | 14.25V | 19V | 20.9V | 28.5V |
| Voltage - Clamping (Max) @ Ipp | 49.9V | 18.2V | 21V | 27.7V | 30.5V | 41.6V |
| Current - Peak Pulse (10/1000µs) | 10A | 27.5A | 23.8A | 18A | 16.4A | 12A |
| Power - Peak Pulse | 500W | 500W | 500W | 500W | 500W | 500W |
| Power Line Protection | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B |
| Supplier Device Package | B, SQ-MELF | B, SQ-MELF | B, SQ-MELF | B, SQ-MELF | B, SQ-MELF | B, SQ-MELF |
