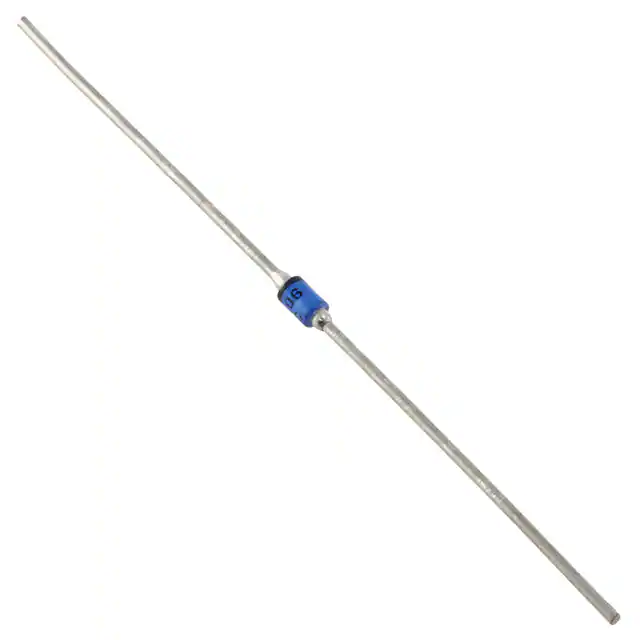

| Part Number | 1N6077 | 1N6075 | 1N6076 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 150 V | 50 V |
| Current - Average Rectified (Io) | 1.3A | 850mA | 1.3A |
| Voltage - Forward (Vf) (Max) @ If | 1.76 V @ 18.8 A | 2.04 V @ 9.4 A | 1.76 V @ 18.8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns | 30 ns | 30 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V | 1 µA @ 150 V | 5 µA @ 50 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | A, Axial | A, Axial | A, Axial |
| Supplier Device Package | - | - | - |
| Operating Temperature - Junction | -65°C ~ 155°C | -65°C ~ 155°C | -65°C ~ 155°C |
