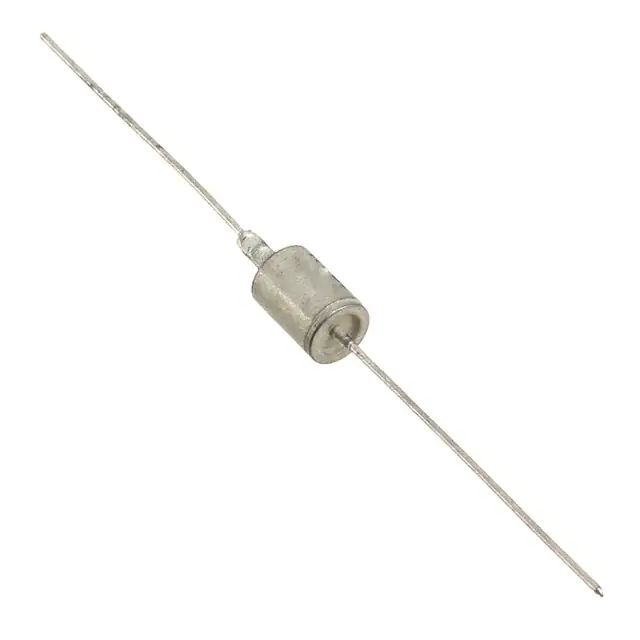

| Part Number | 1N6055A | 1N6057A | 1N6065A | 1N6056A | 1N6059A | 1N6058A | 1N6045A | 1N6050A | 1N6051A | 1N6052A | 1N6053A | 1N6054A |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Solid State Inc. | Solid State Inc. | Solid State Inc. | Microchip Technology | Solid State Inc. | Solid State Inc. | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 40V | 47V | 100V | 43V | 58V | 53V | 15V | 25V | 28V | 30V | 33V | 36V |
| Voltage - Breakdown (Min) | 44.7V | 53.2V | 114V | 48.5V | 64.6V | 58.9V | 17.1V | 28.5V | 31.4V | 34.2V | 37.1V | 40.9V |
| Voltage - Clamping (Max) @ Ipp | 64.8V | 77V | 168V | 70.1V | 92V | 85V | 25.2V | 41.4V | 45.7V | 49.9V | 53.9V | 59.3V |
| Current - Peak Pulse (10/1000µs) | 23.2A | 19.5A | 8.9A | 21.4A | 16.3A | 17.7A | 59.5A | 36A | 33A | 30A | 28A | 25.3A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | - | - | - | -55°C ~ 175°C (TJ) | - | - | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 |
| Supplier Device Package | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 | DO-13 |
