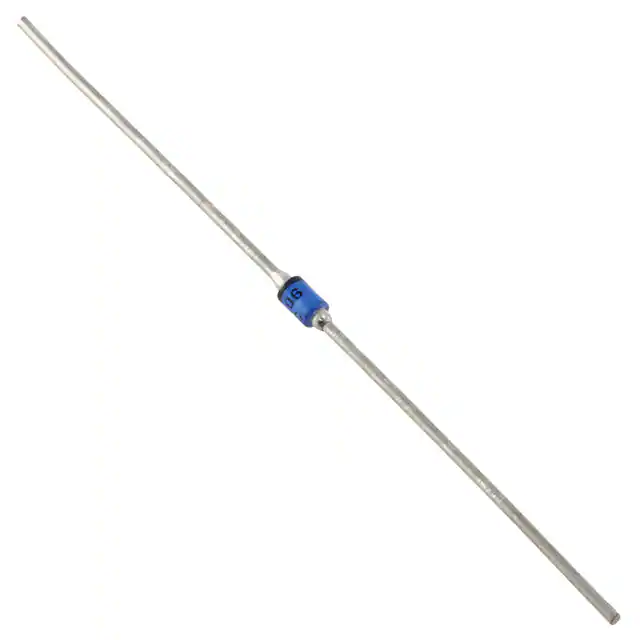

| Part Number | 1N5802 | 1N5807 | 1N5804 | 1N5806 | 1N5809 | 1N5812 | 1N5805 | 1N5803 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Solid State Inc. | Solid State Inc. | Microchip Technology | Microchip Technology | Solid State Inc. | Solid State Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 50 V | 50 V | 100 V | 150 V | 100 V | 50 V | 125 V | 75 V |
| Current - Average Rectified (Io) | 1A | 3A | 2.5A | 2.5A | 3A | 20A | 2.5A | 2.5A |
| Voltage - Forward (Vf) (Max) @ If | 875 mV @ 1 A | 875 mV @ 4 A | 875 mV @ 1 A | 875 mV @ 1 A | 875 mV @ 4 A | 950 mV @ 20 A | 875 mV @ 1 A | 875 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns | 30 ns | 25 ns | 25 ns | 30 ns | 15 ns | 25 ns | 25 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 50 V | 5 µA @ 50 V | 1 µA @ 100 V | 1 µA @ 150 V | 5 µA @ 100 V | 10 µA @ 50 V | 1 µA @ 125 V | 1 µA @ 75 V |
| Capacitance @ Vr, F | 25pF @ 10V, 1MHz | 60pF @ 10V, 1MHz | - | - | 60pF @ 10V, 1MHz | 300pF @ 10V, 1MHz | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Stud Mount | Through Hole | Through Hole |
| Package / Case | A, Axial | B, Axial | DO-204AP, Axial | DO-204AP, Axial | B, Axial | DO-203AA, DO-4, Stud | DO-204AP, Axial | DO-204AP, Axial |
| Supplier Device Package | - | - | DO-204AP | DO-204AP | - | DO-203AA | DO-204AP | DO-204AP |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
